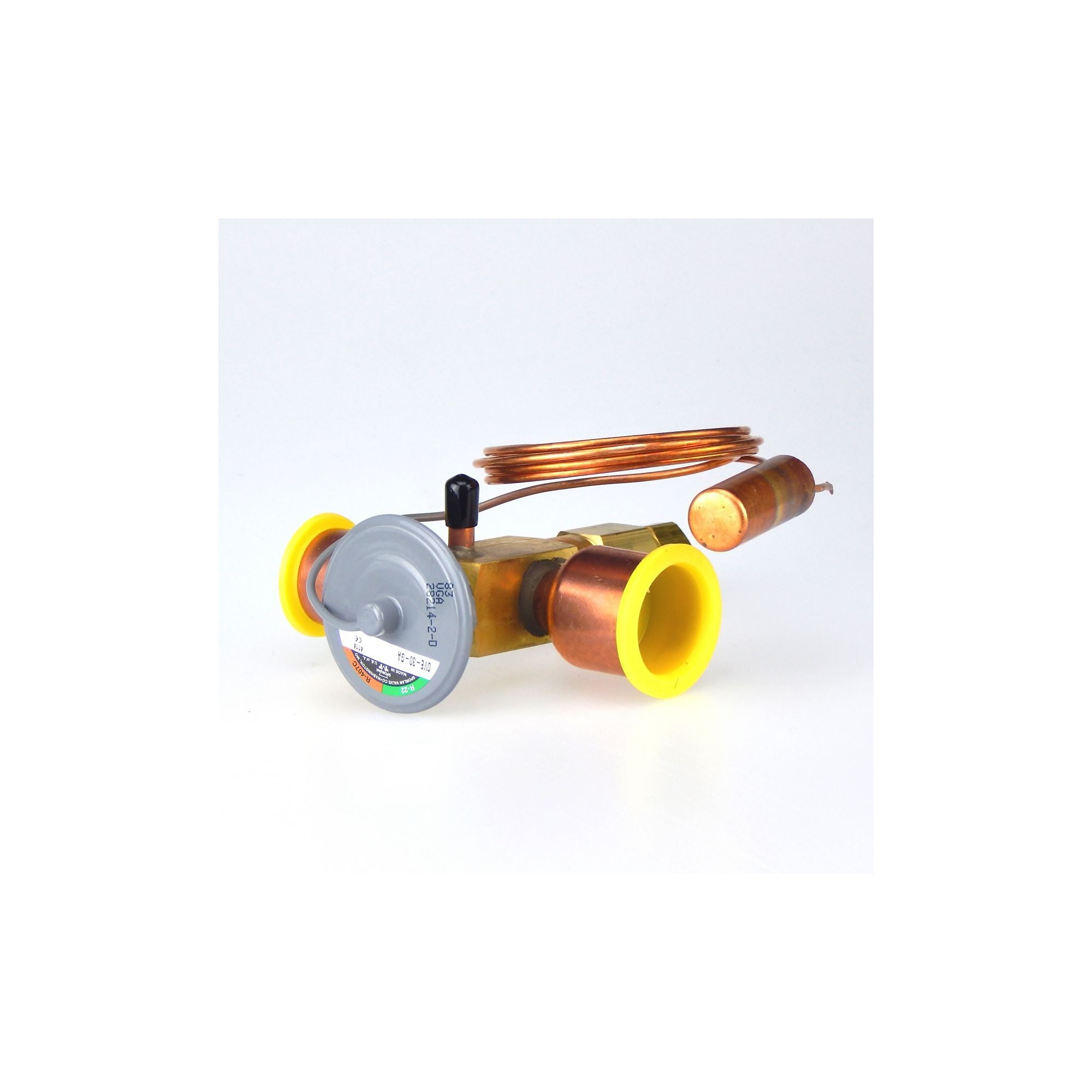

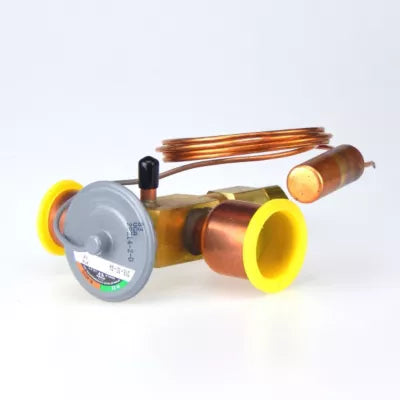

Parker Sporlan 124240 TXV OVE-30-GA 30 Ton R-22 A/C 60in 83 Element 1-1/8in x 1-3/8in ODF Straight-thru

Product Description

The Parker Sporlan 124240 model is a thermostatic expansion valve specifically designed for R-22 and R-407C applications. This valve is engineered to optimize performance in both air conditioning and various refrigeration conditions.

• Optimized thermostatic charges for different applications
• Balanced port design ensures stability under varying conditions
• Adjustable superheat settings provide flexibility

Product Highlights

This product features a stainless steel diaphragm and welded element construction for durability, alongside precise pin and port alignment for improved valve operation. It also includes corrosion-resistant materials and leakproof, high-strength silver soldered connections.

Product Information

Standard Information

• Brand: Parker Sporlan
• MPN: 124240

Technical Specifications

• Capacity: 30 Ton
• Refrigerant Types: R-22, R-407C
• Connection Size: Inlet 1-1/8in, Outlet 1-3/8in
• Body Material: Bi-Metal
• Weight: 2.44 pounds
• Dimensions: Length 6.5 inches, Width 5 inches, Height 3 inches
• Prop 65: Yes
