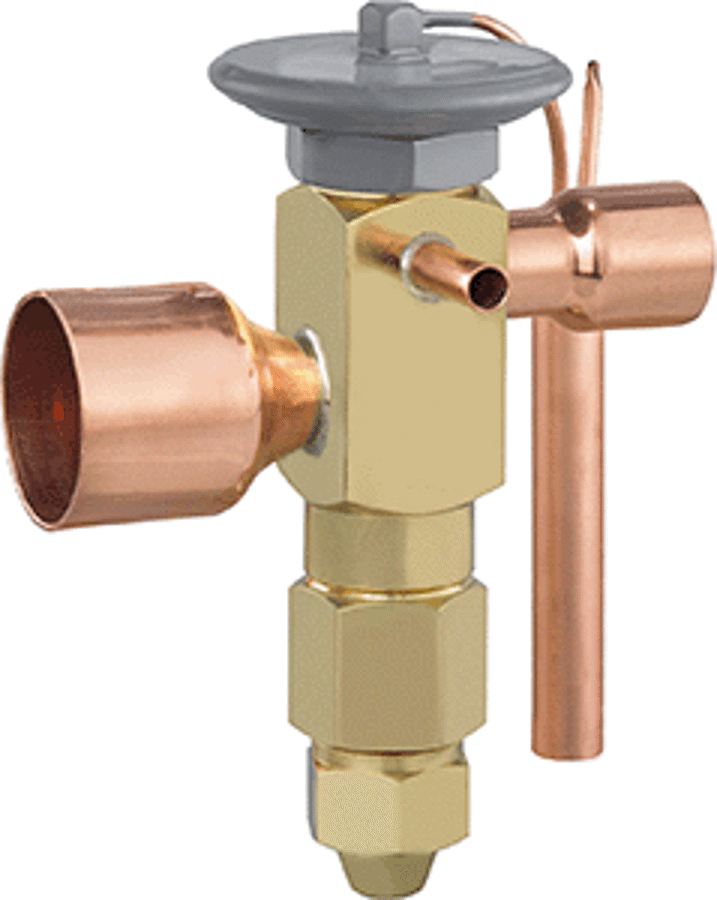

Sporlan 124233 Type O Thermostatic Expansion Valves 20 Tons R-22 A/C 7/8 x 1-3/8 ODF

Product Description

The Sporlan 124233 Type O Thermostatic Expansion Valve is crafted for both refrigeration and air conditioning applications. It features a brass bar body with a balanced port construction and a replaceable thermostatic element.

• Brass bar body with balanced port construction
• Replaceable thermostatic element
• Synthetic seating surface provides tight shut-off during system off periods

Product Highlights

This valve is designed with a permanent 12 mesh strainer at the inlet and offers capacities up to 30 tons for R-22 and 35 tons for R-410A. It includes options for both small and large body styles for various capacity needs.

Product Information

Standard Information

• Size: 7/8 x 1-3/8 x 1/4
• Vendor: Sporlan Valves

Technical Specifications

• Connection Ends: ODF
• Equalizer: External
• Refrigerant: R-22
• Capacity: 20
• Application: A/C
• Port Size: 1/4
• Length: 6.5 inches
• Width: 5.0 inches
• Height: 3.0 inches
• Refrig Code: GA
• Master Product Group: Thermostatic Expansion Valves
• Product Group: Large A/C Valves
• Item Class: TEV-O-83 ELE.
• Price Group: TEV
• Harmonized Code: 8481.80.9045
• Pieces Per Case: 12
• Case Weight: 30.00
• Case Length: 15.50
• Case Width: 12.50
• Case Height: 7.00
• Cases Per Pallet: 45
• Cases Per Layer: 9
• Pallet Weight: 1,400.00
• Pallet Length: 48
• Pallet Width: 40
• Pallet Height: 50
