Product Description

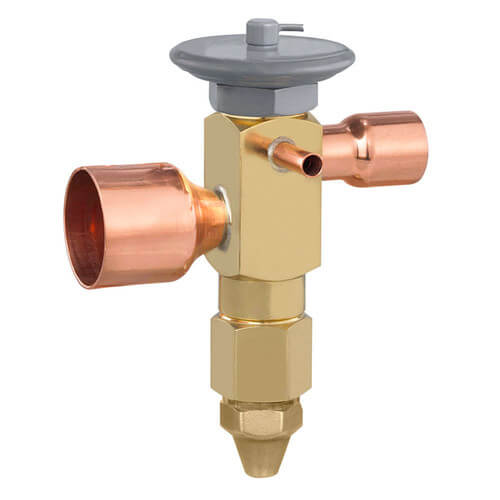

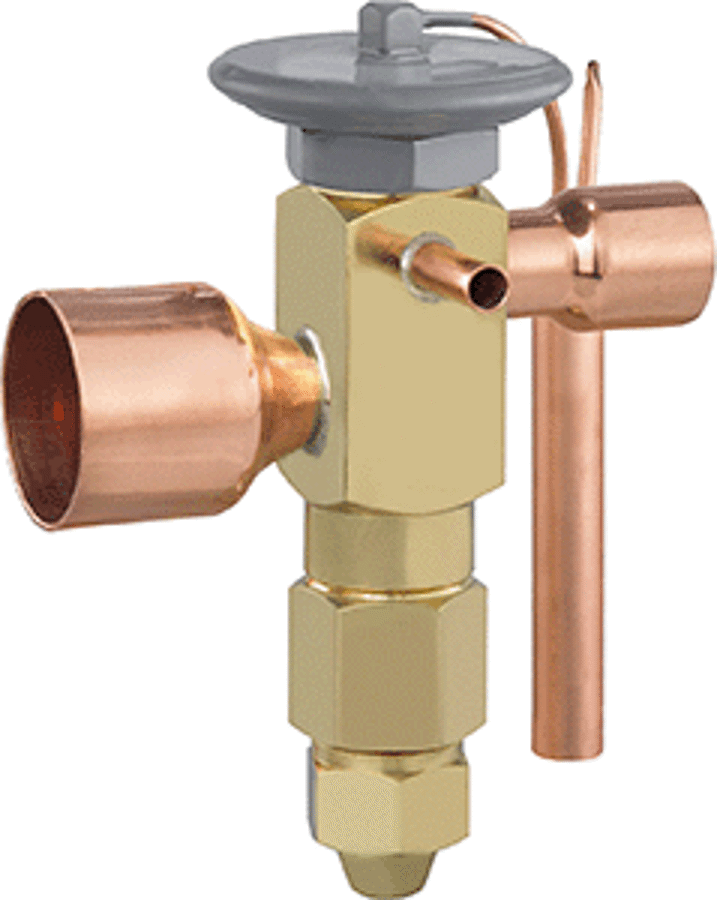

The Sporlan Thermal Expansion Valve, model 124213, is engineered for efficient thermal expansion control in refrigeration and air conditioning systems. This precision device, suitable for use with R-404A refrigerant, plays a crucial role in commercial refrigeration applications.
- Designed for a nominal capacity of 9 tons, ensuring robust performance in large-scale cooling systems.
- Features a 60 inches long capillary tube for flexible installation.
- Equipped with a balance port design which minimizes pressure drop effects for reliable operation.
Product Highlights
This Sporlan Valve is notable for its balance port design that aligns perfectly to prevent operational inconsistencies due to fluctuating pressures. It also features a durable brass body and is equipped with a 12 mesh permanent strainer to protect internal components.
Product Information
Standard Information
-
Refrigerant Type: R-404A
-
Inlet Size: 7/8 inches ODF
Technical Specifications
-
Outlet Size: 1-1/8 inches ODF
-
Capillary Length: 60 inches
-
Equalizer Type: Externally Equalized
-
Nominal Capacity: 9 Ton
-
Body Material: Brass
-
Pressure Capacity for Small O: 450 psi
-
Pressure Capacity for Large O: 425 psi
