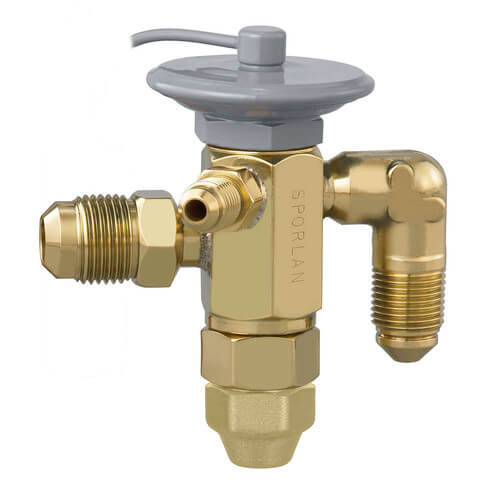

Sporlan 109221 FV-1/2-C 1/4 x 1/2 SAE Thermal Expansion Valve w/ 30 Capillary (1/2 Ton)

Product Description

The Sporlan 109221 FV-1/2-C Thermal Expansion Valve is designed for commercial refrigeration. This valve has 1/4 SAE inlet connection and 1/2 SAE outlet connection, ensuring efficient refrigerant flow. Features include an internally equalized method and a 30-inch capillary length.

• Commercial refrigeration applications
• Internally equalized
• 30-inch capillary length

Product Highlights

The Sporlan Thermal Expansion Valve is essential for regulating refrigerant in cooling systems. Ideal for heat pumps, air conditioning, and refrigeration systems.

Product Information

Standard Information

• Brand: Sporlan
• MPN: 109221
• Category: HVAC and Refrigeration Valves

Technical Specifications

• Refrigerant Type: R-407C, R-422D, R-22, R-407A
• Application: Commercial Refrigeration
• Thermostatic Charge: C
• Nominal Capacity (Ton): 1/2
• Inlet Connection: 1/4 SAE
• Outlet Connection: 1/2 SAE
• Equalizer Method: Internally Equalized
• Capillary Length (Inch): 30
• Strainer Type: 50 Mesh Removable
• Design Working Pressure: 450 psi (31 bar)
• Weight: 1.55 lbs
• Shipping Depth: 7 inches
• Shipping Width: 7 inches
• Shipping Height: 3 inches
• Country of Origin: United States
