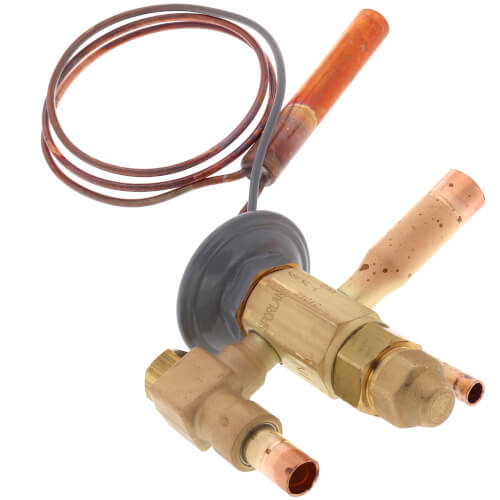

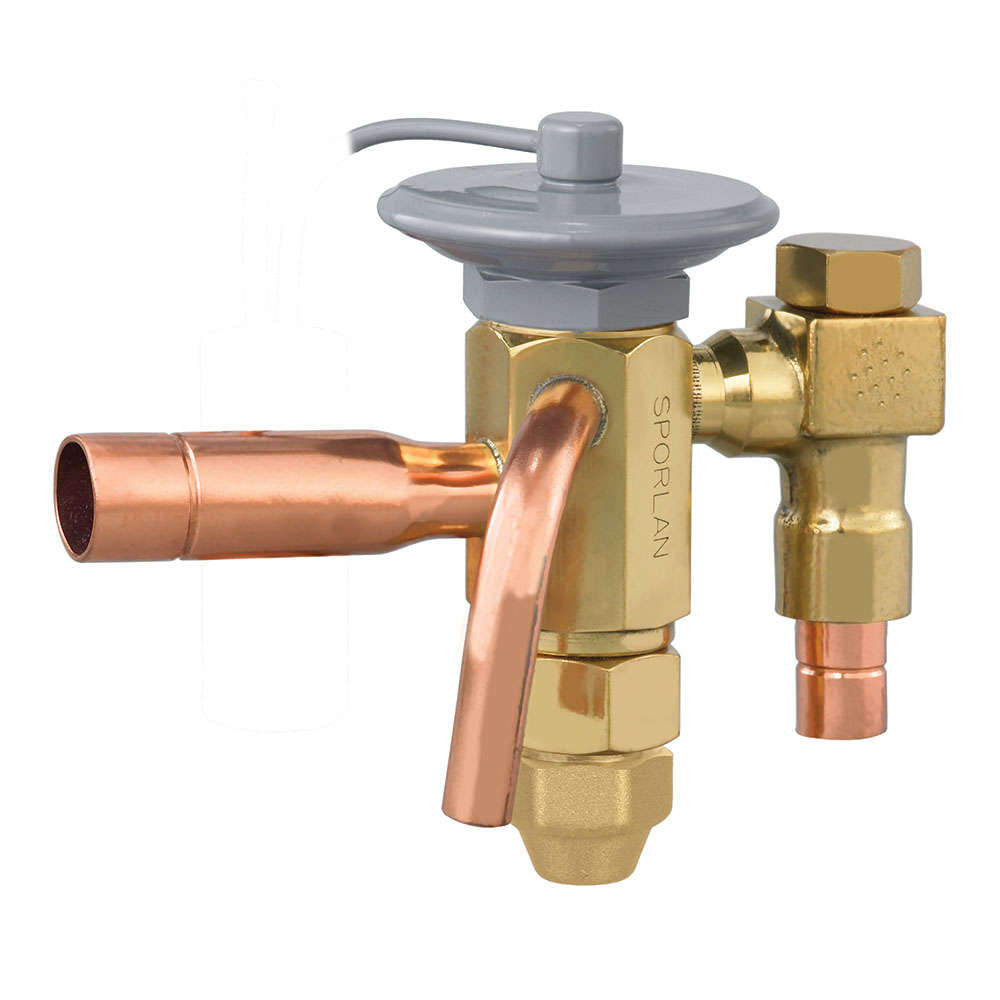

Sporlan 108687 SBFVE-AA-C 3/8 x 1/2 ODF Thermal Expansion Valve w/ 30 Capillary (1/2 to 2/3 Ton)

Product Description

The Sporlan 108687 is a thermal expansion valve designed for commercial refrigeration using refrigerant R-22. This valve features a 3/8 inch inlet and a 1/2 inch outlet connection, suitable for systems with capacities between a half and two-thirds of a ton.

• Compatible with refrigerants R-22, R-407A, R-422D, and R-407C
• Includes an externally equalized connection
• Factory tested for leak-free performance

Product Highlights

This valve is engineered for high reliability and efficiency in various application environments, from supermarket systems to industrial chillers.

Product Information

Standard Information

• Manufacturer: Sporlan Controls
• MPN: 108687

Technical Specifications

• Refrigerant Type: R-22
• Application: Commercial Refrigeration
• Thermostatic Charge: C
• Nominal Capacity (Ton): 1/2 to 2/3
• Inlet Connection: 3/8 ODF
• Outlet Connection: 1/2 ODF
• Equalizer Method: Externally Equalized
• Capillary Length: 30 inches
• Strainer Type: 100 Mesh Removable
