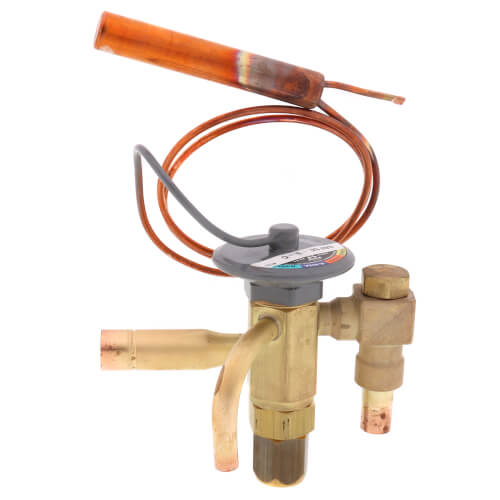

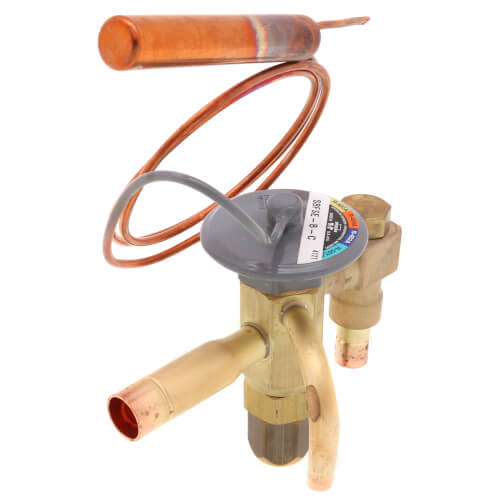

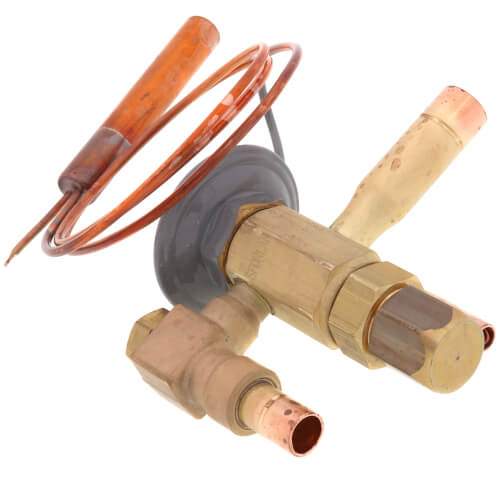

Sporlan 108624 SBFSE-B-C 3/8 x 1/2 ODF Thermal Expansion Valve w/ 30 Capillary 1-1/4 to 2 Ton

Product Description

The Sporlan 108624 SBFSE-B-C thermal expansion valve is designed for commercial refrigeration. This valve features an inlet connection of three-eighths inch ODF and an outlet connection of one-half inch ODF. It comes with a thirty-inch capillary tube and is suitable for systems with capacities from one and one-quarter to two tons. The valve is factory tested for leak-free performance.

• Inlet Connection: 3/8 ODF
• Outlet Connection: 1/2 ODF
• Capillary Length: 30 inches

Product Highlights

This valve is effective in preventing pressure drops and ensuring stable operation across varying conditions.

Product Information

Standard Information

• Refrigerant Type: R-404A
• Application: Commercial Refrigeration

Technical Specifications

• Thermostatic Charge: C
• Nominal Capacity (Ton): 1-1/4 to 2
• Equalizer Method: Externally Equalized
• Strainer Type: 100 Mesh Removable
• Design Working Pressure: 450 psi (31 bar)
