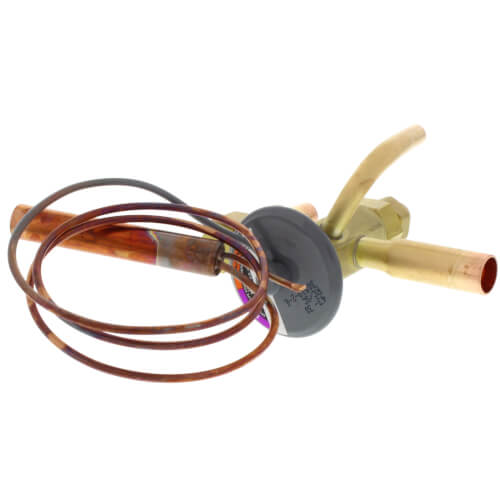

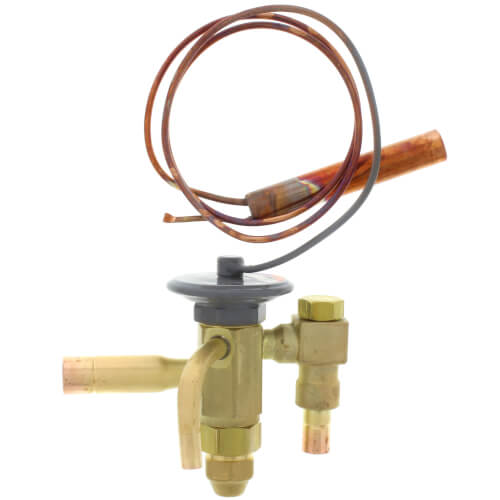

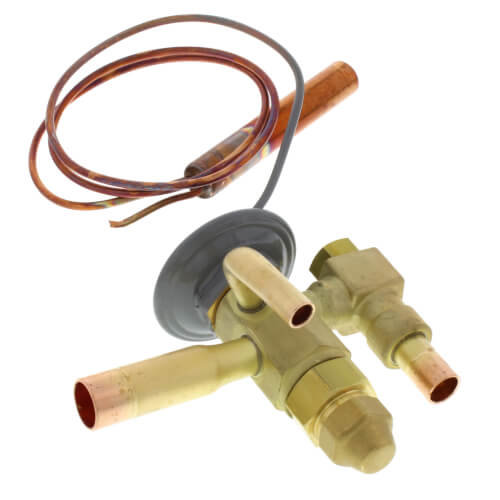

Sporlan 108619 SBFSE-A-ZP 3/8 x 1/2 ODF Thermal Expansion Valve w/ 30 Capillary (1/2 to 1 Ton)

Product Description

The Sporlan 108619 SBFSE-A-ZP is a thermal expansion valve designed for use with R-404A refrigerant. This valve is suitable for low temperature refrigeration applications and can support systems with a nominal capacity ranging from half ton to one ton.

• Compatible with R-404A refrigerant.
• Includes a thirty-inch capillary tube.
• Constructed with an externally equalized mechanism.

Product Highlights

This valve is factory tested for leak-free performance and features a brass body with ODF connections. Its balance port design ensures consistent operation even under varying pressures.

Product Information

Standard Information

• Refrigerant Type: R-404A
• Application: Low Temp Refrigeration

Technical Specifications

• Thermostatic Charge: ZP
• Nominal Capacity (Ton): 0.5 to 1
• Inlet Connection: 3/8 ODF
• Outlet Connection: 1/2 ODF
• Equalizer Method: Externally Equalized
• Capillary Length (Inch): 30
• Strainer Type: 100 Mesh Removable
• Design Working Pressure: 450 psi (31 bar)
