Sporlan 108618 SBFSE-A-Z 3/8 x 1/2 ODF Thermal Expansion Valve w/ 30 Capillary (1/2 to 1 Ton)

Product Description

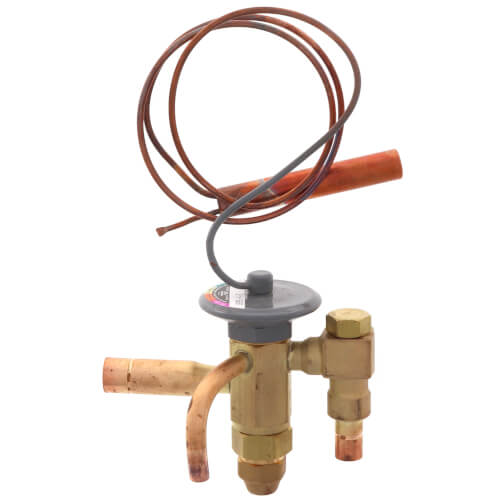

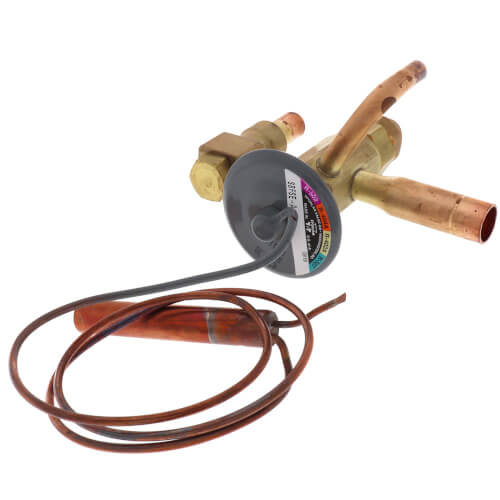

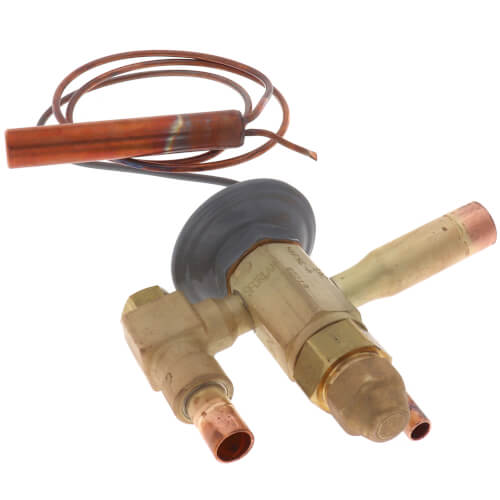

The Sporlan Controls 108618 is a thermal expansion valve designed for low-temperature refrigeration. This model features a three-eighths inch inlet and a one-half inch outlet. It comes equipped with a thirty-inch capillary tube suitable for systems ranging from one-half to one ton capacity.

• R-404A refrigerant type suitable for various applications.
• Externally equalized for improved performance.
• Durable brass body with flare and sweat connections.

Product Highlights

The valve includes adjustable superheat and is factory tested for reliable, leak-free operation.

Product Information

Standard Information

• Manufacturer: Sporlan Controls
• Part ID: 249930

Technical Specifications

• Refrigerant Type: R-404A, R-408A, R-502
• Application: Low Temp Refrigeration
• Inlet Connection: 3/8 ODF
• Outlet Connection: 1/2 ODF
• Capillary Length: 30 inches
• Design Working Pressure: 450 psi (31 bar)
• Strainer Type: 100 Mesh Removable
• Nominal Capacity: 1 Ton
