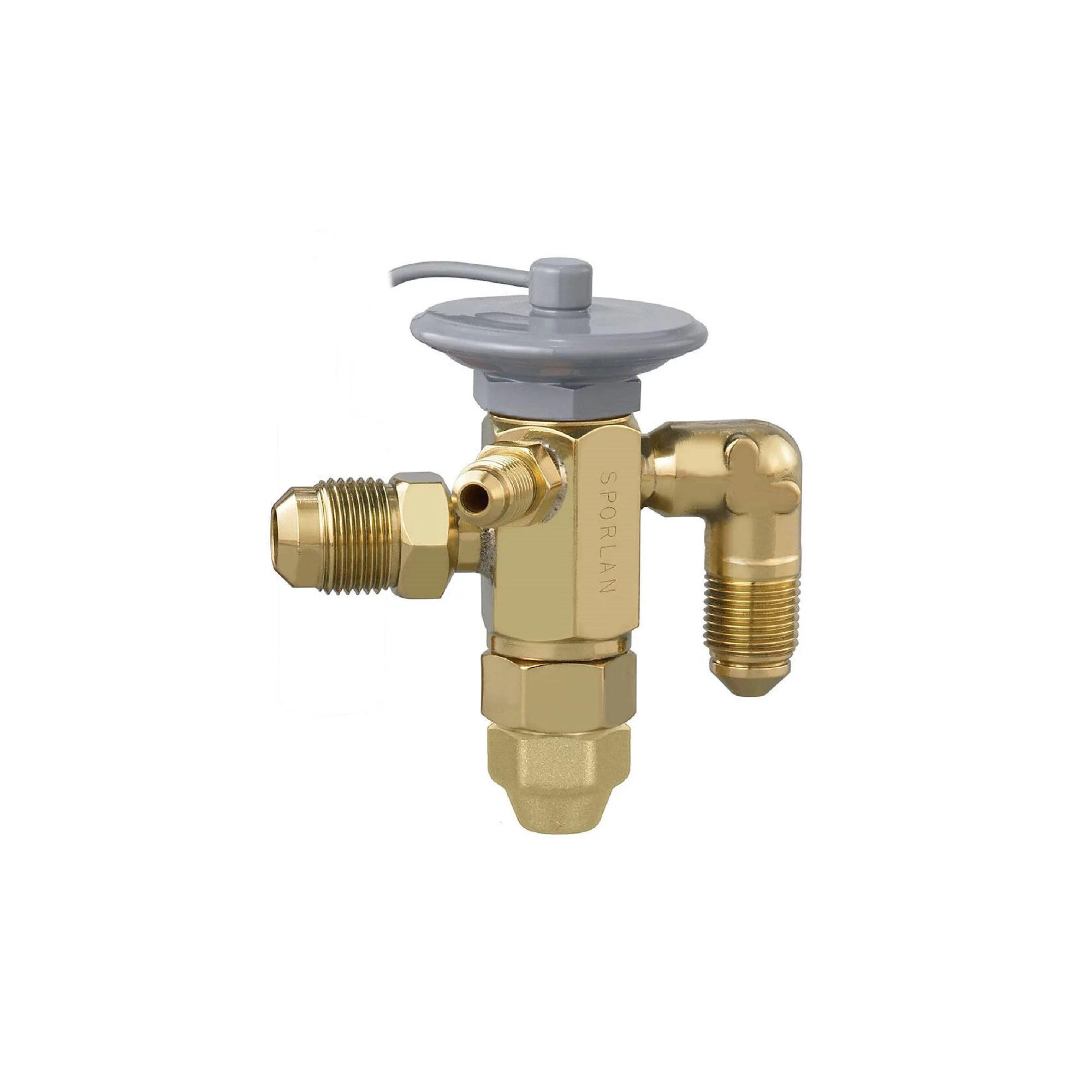

Parker Sporlan 100958 TXV BFJE-B-C 1.25 thru 1.75 Ton R-134A Commercial Refrigeration 30inch 3/8inch x 1/2inch x 1/4inch SAE Angle

Product Description

The Parker Sporlan 100958 Thermostatic Expansion Valve is engineered for optimal performance in commercial refrigeration applications using R-134A refrigerant. Specifically designed for systems ranging from 1.25 to 1.75 tons, this valve adjusts coolant flow based on evaporator temperature changes.

• Engineered for air conditioning, heat pump, medium, and low temperature refrigeration.
• Balanced port design for stable operation under varying conditions.
• Durable stainless steel and brass construction with adjustable superheat settings.

Product Highlights

This TXV features selectively charged thermostatic elements and a balanced port design, which allows for precise control despite changes in pressure drop across the valve. Its rugged design includes a stainless steel diaphragm and brass components that resist corrosion and wear.

Product Information

Standard Information

• Brand: Parker Sporlan
• MPN: 100958
• Refrigerant Type: R-134A

Technical Specifications

• Capacity: 1.25 to 1.75 Ton
• Connection Type: SAE
• Connection Sizes: Inlet 3/8 inch SAE, Outlet 1/2 inch SAE
• Body Material: Machined Brass Bar
• Pin Material: Stainless Steel
• Country of Origin: USA
