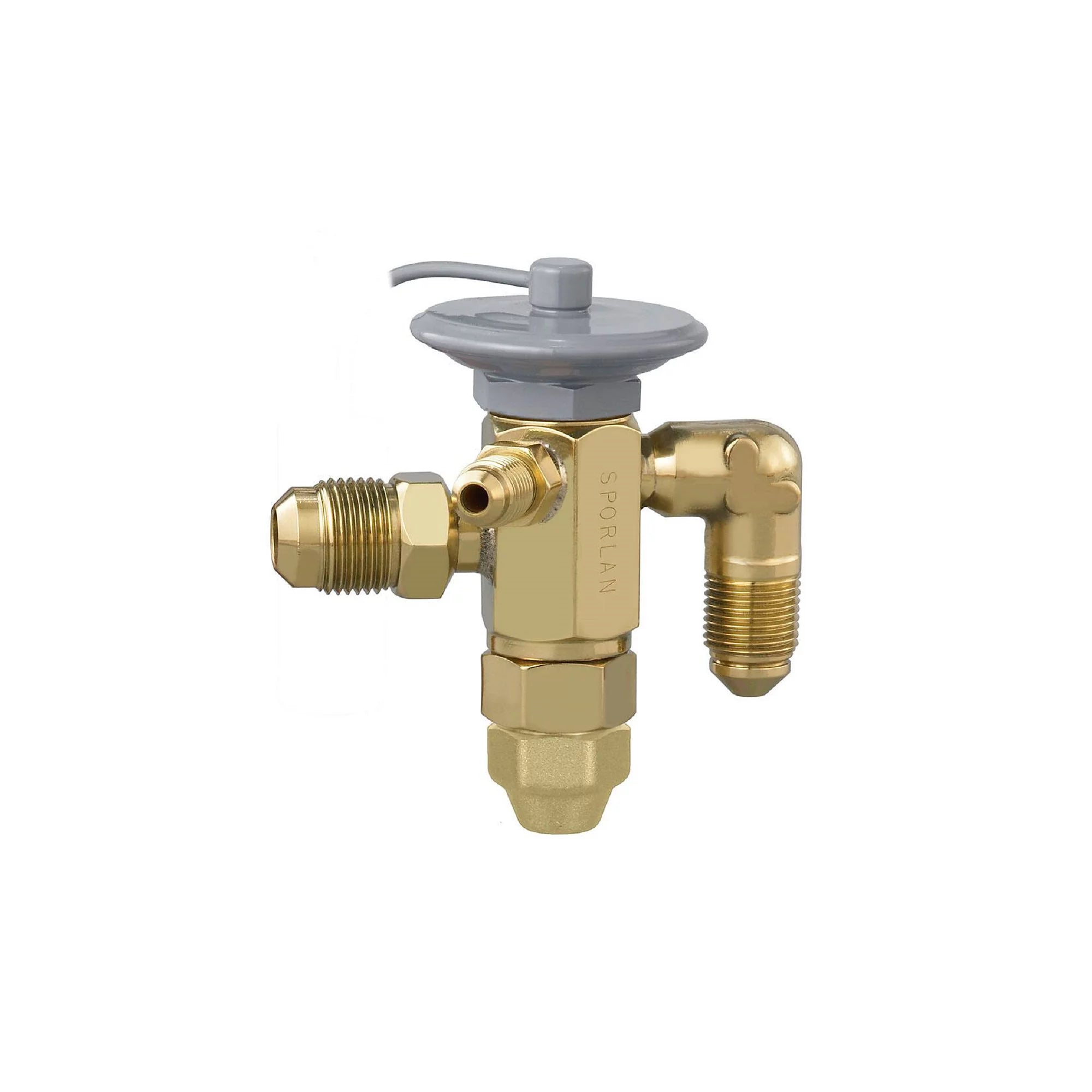

Parker Sporlan 100407 TXV BFS-A-ZP 1/2 thru 1 Ton R-404A Low Temp Refrig 30in 1/4in x 1/2in SAE Angle BFSAZP3812SAE30

Product Description

The Parker Sporlan 100407 Thermostatic Expansion Valve is precisely engineered to optimize performance in air conditioning, heat pump, and refrigeration applications. This valve is notable for its balanced port design and adjustable superheat settings.

• Optimized for R-404A refrigerant applications.
• Features robust stainless steel diaphragm and welded element construction for prolonged durability.
• Equipped with silver soldered connections to ensure leakproof and high-strength joints.

Product Highlights

This valve provides superior control under varying operating conditions thanks to its balanced port design which aligns the pin and port perfectly, preventing influence from pressure drop changes.

Product Information

Standard Information

• Made in: USA
• Brand: Parker Sporlan

Technical Specifications

• Connection Type: Flare
• Refrigerant Type: R-404A
• Weight: 1.24 pounds
• Height: 3.125 inches
• Length: 4.25 inches
• Width: 3.75 inches
• Connection Sizes: Inlet 3/8 inches SAE, Outlet 1/2 inches SAI
• Max Working Pressure: 450 psi
