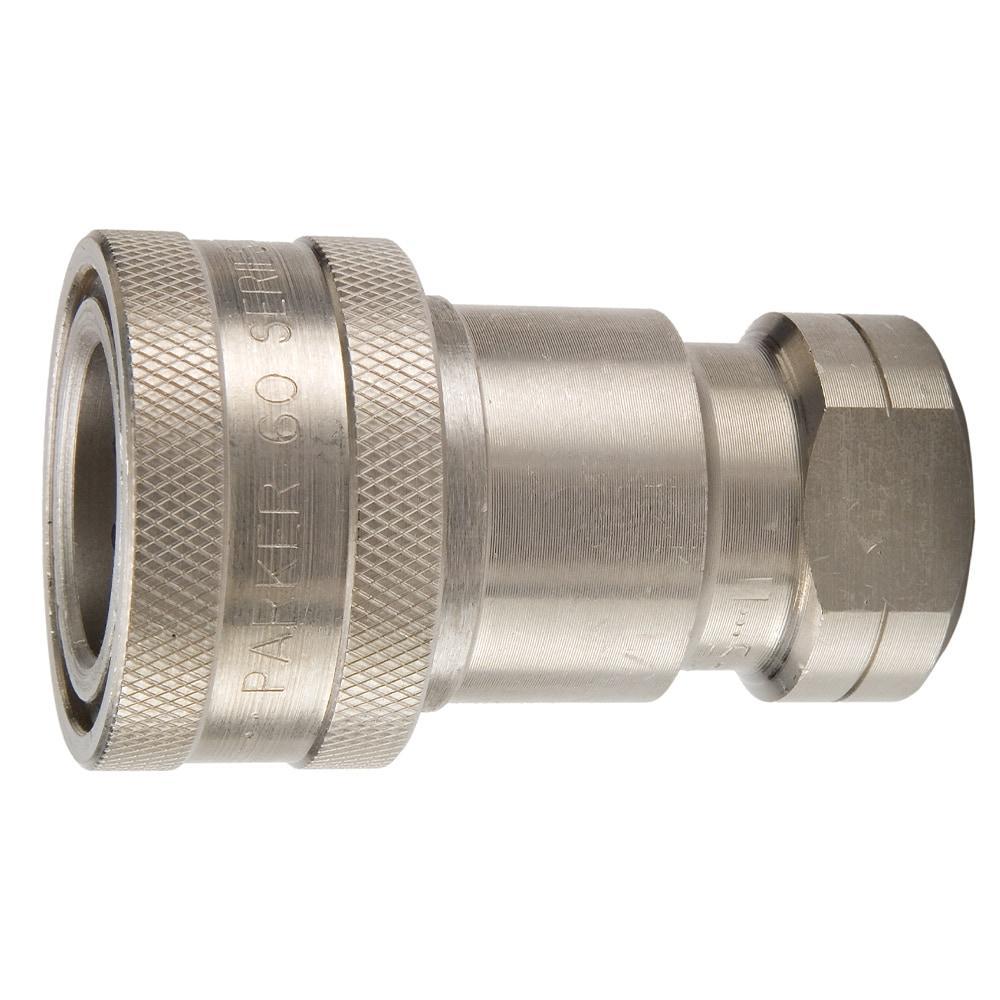

Parker SH2-62Y Quick Coupler 303 Stainless Steel

Product Description

The Parker SH2-62Y Quick Coupler features a 303 stainless steel construction. This coupler is designed to connect with industrial interchange nipples, providing a reliable solution for a variety of pneumatic applications. It has a hex size of 0.81 inches, operating efficiently within a temperature range of negative fifteen to four hundred degrees Fahrenheit.

• Compatible with standard male tips in the pneumatic industry
• Constructed from durable 303 stainless steel
• Pressure rated up to 300 psi

Product Highlights

This coupler serves multiple purposes and is widely used in various applications, ensuring a robust and secure connection.

Product Information

Standard Information

• Brand: Parker
• Manufacturer: Parker HVAC Filtration

Technical Specifications

• Dimensions: 0.9 inches Diameter
• Material: 303 Stainless Steel
• Length: 2.47 inches
• Hex Size: 0.81 inches
• End Style: Quick Connect Coupler x Push-Lock Hose Barb
• Nominal Size: 1/4 x 3/8 inches
• Pressure Rating: 300 psi
• Temperature Rating: -15 to 400 degrees Fahrenheit
• Series: 20 Series
• Domestic/Import: Domestic
• Type: Industrial Interchange General Purpose Straight
