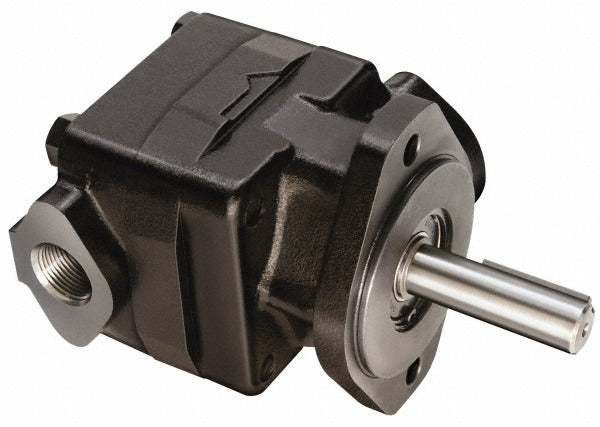

Parker SDV-10610-1 Hydraulic Vane Pump 9.3 Gpm

Product Description

The PARKER SDV-10610-1 is a hydraulic vane pump designed for industrial and mobile hydraulic systems requiring reliable positive-displacement fluid power. Operating at a rated speed of 1800 RPM, this pump delivers 9.3 GPM of flow output, making it suited for medium-flow hydraulic circuits. The inlet port measures 1 inch and the outlet port measures 1/2 inch. The shaft length is 1.75 inches and the unit depth is 5 inches. Weighing 15 pounds, the SDV-10610-1 is a direct-mount pump intended for installation by qualified hydraulic system technicians or millwrights.

This pump is appropriate for use in industrial machinery, hydraulic power units, and mobile equipment applications that require a fixed-displacement vane pump configuration. It is suited for both new installations and replacement service in systems originally designed around a 1800 RPM pump with a 9.3 GPM flow rate. Typical install scenarios include coupling directly to an electric motor or PTO shaft on a hydraulic power unit.

Key Features

• 9.3 GPM flow rate at rated speed of 1800 RPM
• 1 inch inlet port for adequate fluid supply to the pumping element
• 1/2 inch outlet port for connection to the system pressure line
• 1.75 inch shaft length for direct coupling to motor or drive
• 5 inch depth for compact hydraulic power unit integration
• Vane-pump design provides relatively smooth, low-pulsation flow

Compatibility

Designed as an OEM-style replacement or new-installation vane pump for hydraulic power units and industrial machinery requiring a 1800 RPM, 9.3 GPM fixed-displacement pump with a 1 inch inlet and 1/2 inch outlet.

Installation Notes

Installation should be performed by a qualified hydraulic technician or millwright. Depressurize and de-energize the hydraulic system fully before removing or installing the pump. Ensure proper shaft alignment between the pump and drive motor to prevent premature bearing wear. Follow applicable industry standards and the equipment manufacturer guidelines for port torque values, fluid type, and system pressure ratings.
