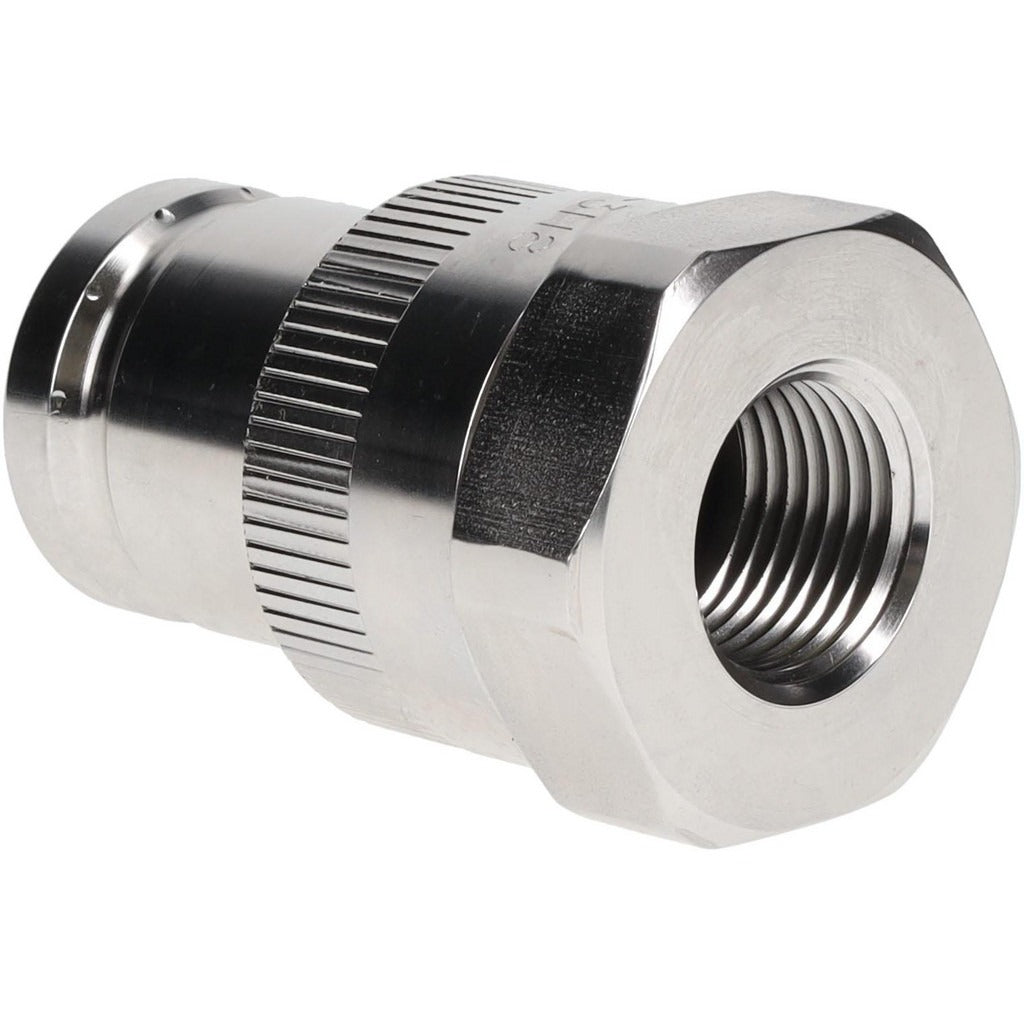

Parker S71-3N8-8F Hydraulic Hose Valve Fitting 5000 Psi

Product Description

The PARKER S71-3N8-8F is a straight hydraulic hose valve fitting engineered for high-pressure fluid control in demanding industrial and offshore applications. Built from stainless steel with a threaded NPSF connection, it handles working pressures up to 5,000 psi and operating temperatures from -35 degrees F to 250 degrees F. The straight body profile keeps plumbing layouts compact and clean. Licensed hydraulic technicians and pipefitters working on industrial hydraulic lines, offshore drilling equipment, and related high-pressure systems will find this fitting a direct-fit solution in Parker Series 71 configurations.

This fitting is suited for industrial hydraulic lines and offshore drilling applications where corrosion resistance and reliable pressure containment are critical. The stainless steel construction holds up in wet, chemically aggressive, and saltwater-exposed environments typical of offshore and marine hydraulic systems. At 1/2 inch hose size and 1/2 inch thread size, it fits mid-range hydraulic circuits commonly found in both mobile and stationary high-pressure equipment.

Key Features

• 5,000 psi maximum working pressure for high-demand hydraulic circuits
• Stainless steel construction for corrosion resistance in aggressive environments
• Straight body shape for in-line plumbing without directional offset
• NPSF threaded connection for secure, leak-resistant assembly
• Wide temperature range: -35 degrees F to 250 degrees F
• Part of Parker Series 71 hydraulic fitting family

Compatibility

Designed for use with industrial hydraulic lines and offshore drilling systems. Fits Parker Series 71 hydraulic hose valve fitting configurations with 1/2 inch hose size and 1/2 inch NPSF thread size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter. Depressurize and isolate the hydraulic circuit fully before removing or installing any fitting. Inspect threads and sealing surfaces for damage before assembly, and apply appropriate thread sealant compatible with the system fluid. Torque to the fitting manufacturer specifications for the connection size and thread type used in the system.
