Parker RK1P3 Solenoid Valve 110/120V 10W

Product Description

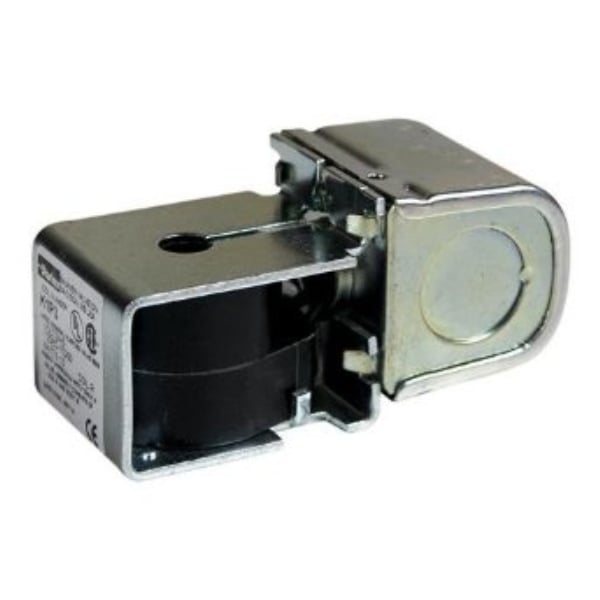

The Parker RK1P3 solenoid valve coil operates at 110/120V and 50/60 Hz with a power consumption of 10 Watts. Designed for use with CFC, HCFC, and HFC refrigerants, this coil features a 6" lead electrical connection and a general purpose junction box enclosure. It has a pressure rating of 200WP and an operating temperature of 140 Deg F.

• 10W power consumption
• Operates at 110/120V and 50/60HZ
• Features 6" leads

Product Highlights

The Parker RK1P3 solenoid valve coil is suitable for refrigeration applications using CFC, HCFC, and HFC refrigerants.

Product Information

Standard Information

• Brand: PARKER
• Manufacturer Part Number: RK1P3

Technical Specifications

• Coil Volts: 110/120V
• Frequency: 50/60 Hz
• Power: 10 Watts
• Operating Temperature: 140 Deg F
• Inrush VA: 37
• Enclosure: Box, NEMA Class F
• Current Drain Holding: 19 VA
• Pressure: 200WP
• Brand Name: Parker
• Type: Solenoid Coil
• Voltage: 110/120 VAC
• Coil Type: Junction Box
