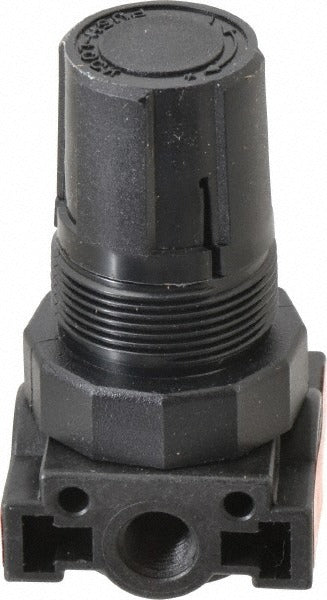

Parker R24-02CK Miniature Air Regulator 1/4 Npt 150 Psi

Product Description

The PARKER R24-02CK is a miniature compressed air regulator designed to reduce and maintain downstream pressure in pneumatic systems. Part of the R24 series, this regulator features a 1/4 inch NPT port and handles a maximum supply pressure of 150 psi with an adjustable output range of 0 to 125 psi. Constructed with a plastic body, it is lightweight at 0.25 pounds and compact at 1.6 inches wide by 3.1 inches high. Licensed HVAC technicians, plumbers, and pneumatic system technicians install this type of regulator where a small footprint and reliable pressure control are required.

The R24-02CK is suited for light-duty compressed air and water applications in residential and light commercial settings. Its miniature form factor makes it a practical choice for tight installation spaces where a full-size regulator will not fit. The regulator operates within a temperature range of 40 degrees F to 125 degrees F, making it appropriate for indoor pneumatic lines and instrumentation supply circuits. No pressure gauge is included, though a 1/8 inch gauge port is available for adding one if monitoring is required.

Key Features

• Miniature R24 series design for space-constrained installations
• 1/4 inch NPT end connections for standard compressed air line hookup
• 150 psi maximum supply pressure with 0 to 125 psi adjustable output range
• 1/8 inch gauge port included for optional downstream pressure monitoring
• Plastic body construction keeps weight to 0.25 pounds
• Compatible with both compressed air and water fluid types

Compatibility

Designed as an OEM-style replacement or new-installation component for miniature pneumatic regulator applications using 1/4 inch NPT connections and standard compressed air supply lines.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or plumbing systems. Depressurize the supply line fully before removing or installing any regulator. Apply thread sealant rated for compressed air service to NPT fittings and do not overtighten plastic-bodied components. Verify that supply pressure does not exceed 150 psi and that system operating temperatures remain within the 40 degrees F to 125 degrees F rated range.
