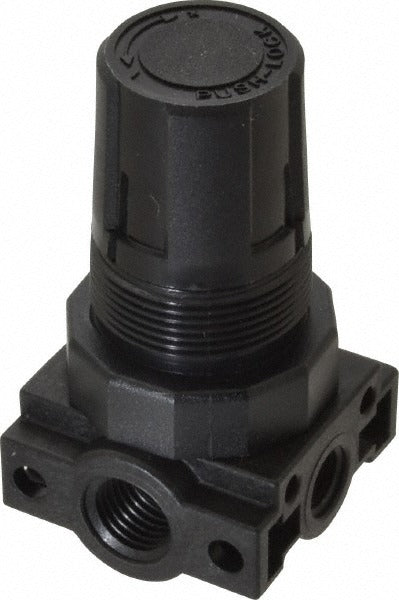

Parker R24-02AK Miniature Air Regulator 1/4 Inch Npt

Product Description

The PARKER R24-02AK is a miniature compressed air regulator designed to reduce and maintain downstream pressure in pneumatic systems. Part of the R24 series, it accepts supply pressure up to 150 psi and delivers a regulated output range of 0 to 25 psi. The compact plastic body measures 1.6 inches wide by 3.1 inches high, making it well suited for space-constrained panel or inline installations. No pressure gauge is included, though a 1/8 inch gauge port is available if monitoring is required. Licensed contractors and pneumatic system technicians are the typical installers for this type of regulator.

The R24-02AK is rated for use in compressed air and water fluid service across a temperature range of 40 degrees F to 125 degrees F. Its miniature form factor makes it appropriate for light-duty pneumatic circuits, instrumentation lines, and control panel applications in both commercial and industrial settings where space and weight are at a premium. The 1/4 inch NPT end connections allow straightforward integration into standard threaded pneumatic plumbing.

Key Features

• Miniature form factor: 1.6 inches wide by 3.1 inches high for compact installations
• 0 to 25 psi regulated output range with up to 150 psi maximum supply pressure
• 1/4 inch NPT end connections for standard threaded pneumatic plumbing
• 1/8 inch gauge port thread size available for optional downstream pressure monitoring
• Rated for compressed air and water fluid service
• Operating temperature range of 40 degrees F to 125 degrees F

Compatibility

Designed as an OEM-style replacement or new-installation regulator for miniature pneumatic circuits using 1/4 inch NPT threaded connections with supply pressures up to 150 psi.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician. Depressurize the system completely before installing or removing the regulator. Apply appropriate thread sealant to NPT connections per manufacturer and applicable plumbing code guidelines. Do not exceed the 150 psi maximum supply pressure rating or operate outside the rated temperature range.
