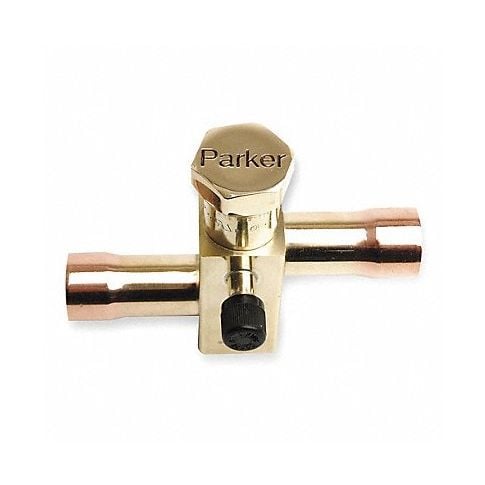

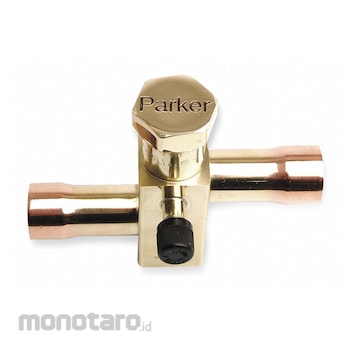

Parker QL-171R-12-12 Refrigeration Shutoff Valve

Product Description

The Parker QL-171R-12-12 Refrigeration Shutoff Valve controls flow in refrigeration systems. It has copper sweat ODF connections that enable easy installation. This valve allows for bi-directional flow and handles a maximum pressure of seven hundred fifty psi.

• Constructed from durable brass and features copper connections.
• Compatible with R-22 air conditioning condensing units and heat pumps.
• Includes a 1/4 inch SAE access valve on the right side of the field connection.

Product Highlights

This valve is perfect for a range of refrigeration applications, ensuring reliable operation in various conditions.

Product Information

Standard Information

• Model Number: QL171R1212
• Unit: 1pc

Technical Specifications

• Connection Size: 3/4 inch ODF
• Maximum Working Pressure: 750 psi
• Body Material: Brass
• Connection Material: Copper
• Outside Diameter: 7/8 inch
• Operating Temperature Range: -40 to +250 degrees F
• Style: Front Seating
• Flow: Bi-directional
• Features: 1/4 inch SAE Access Valve on Right Facing Field Connection
• For Use With: R-22 Air Conditioning Condensing Units and Heat Pumps
• Weight: 0.5 Kg
• Item: Refrigeration Service/Shutoff Valve
