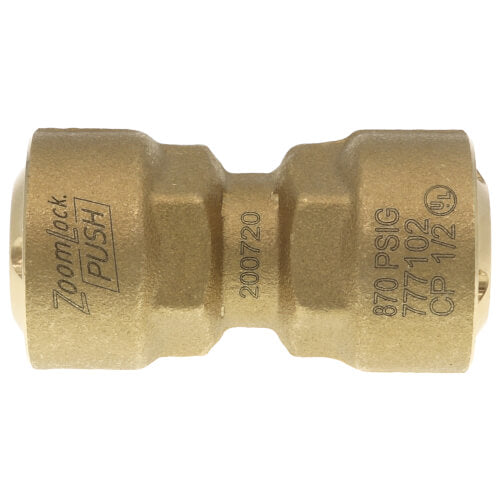

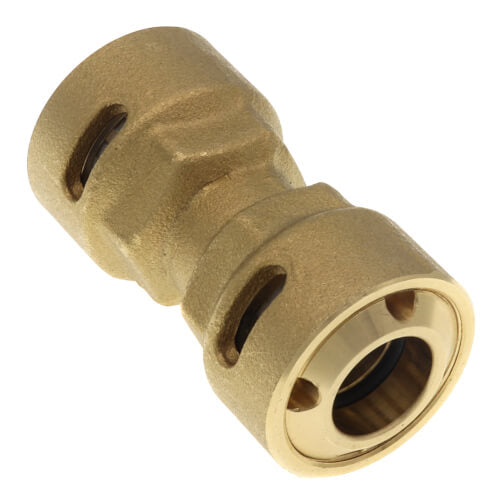

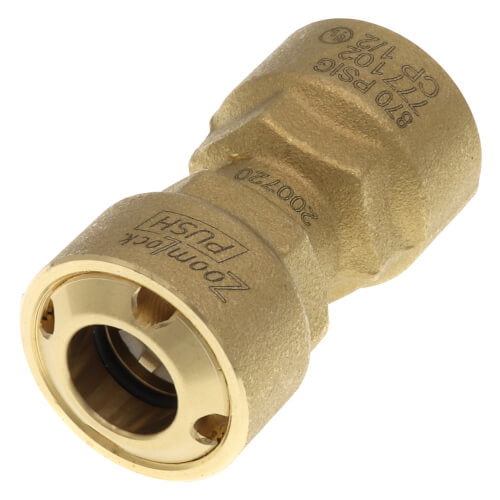

Parker PZKP-C8-HNBR ZoomLock PUSH R410A Optimized Coupling 1/2 inches

Product Description

The PARKER PZKP-C8-HNBR ZoomLock PUSH push-to-connect refrigerant fitting is designed for HVACR applications, eliminating the need for brazing. This 1/2" coupling allows for rapid connection of refrigerant lines, enhancing installation efficiency and safety. It is suitable for Residential AC, HP, Mini-split, and Refrigeration systems, ensuring secure, leak-free connections. The fitting features an HNBR O-Ring Material and a Maximum Rated Pressure of 700 psi, with a Continuous Operating Temperature of 250°F / 121°C.

• No press tool or jaws needed for installation
• Fast and easy installation process
• Secure, leak-free connections

Product Highlights

Eliminates brazing and hot work, providing quick, safe, and reliable refrigerant line connections.

Product Information

Standard Information

• Brand: PARKER
• Manufacturer Part Number: PZKP-C8-HNBR

Technical Specifications

• Connection Size: 1/2"
• Refrigerant Type: R-410A
• Applications: High Pressure HVAC/R
• Continuous Operating Temperature: 250°F / 121°C
• O-Ring Temperature Rating: -40°F to +300°F, -40°C to +149°C
• Maximum Rated Pressure: 700 psi / 48 bar
• Minimum Burst Pressure: 2,100 psi / 145 bar
• Vacuum Pressure Capability: 500 Microns
• External Leak Rate: <0.1 Ounces of Helium per Year at Operating Pressure Range
• Vibration Resistance: Conforms to UL109
• Fitting Body Material: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
• O-Ring Material: HNBR
• Certifications: UL Listed SA7511 Approved use for field and factory installations, ASHRAE-15, ANSI 15, ASME B31.5, ANSI 31.5
