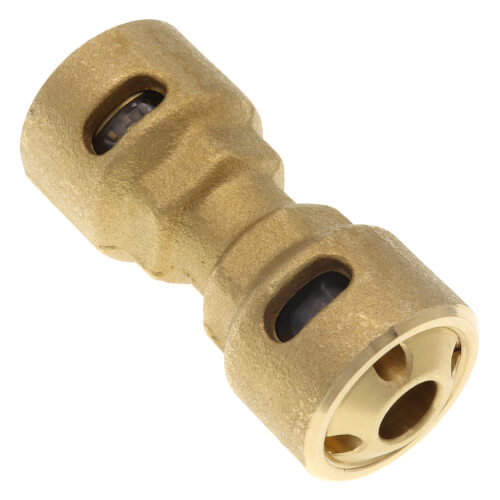

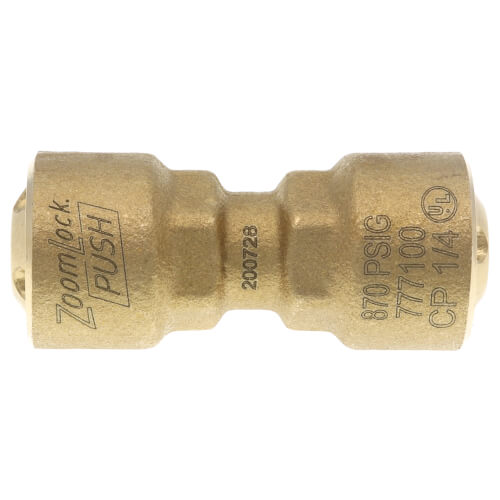

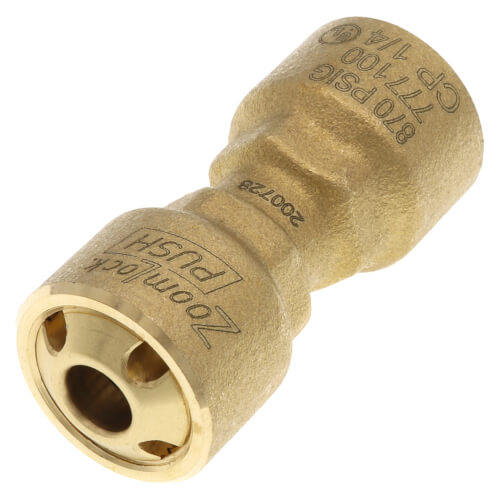

Parker PZKP-C4-HNBR 1/4 inch ZoomLock PUSH R410A Optimized Coupling

Product Description

The PARKER PZKP-C4-HNBR ZoomLock PUSH push-to-connect refrigerant coupling is designed for HVAC/R systems, eliminating the need for brazing. This 1/4" coupling allows for quick and secure connections of refrigerant lines, enhancing installation efficiency and safety. Optimized for R-410A refrigerant, it is suitable for residential AC, heat pump, mini-split, and refrigeration applications, providing a reliable solution for high-pressure environments up to 700 psi.

• No press tool or jaws needed for installation
• Fast and easy installation process
• Secure, leak-free connections for refrigerant lines

Product Highlights

Push-to-connect design for quick, brazing-free refrigerant line connections in HVAC/R systems.

Product Information

Standard Information

• Brand: PARKER
• Manufacturer Part Number: PZKP-C4-HNBR
• Country of Origin: KOREA, REPUBLIC OF

Technical Specifications

• Connection Size: 1/4"
• Applications: High Pressure HVAC/R
• Continuous Operating Temperature: 250°F / 121°C
• O-Ring Temperature Rating: -40°F to +300°F, -40°C to +149°C
• Maximum Rated Pressure: 700 psi / 48 bar
• Minimum Burst Pressure (UL 207): 2,100 psi / 145 bar
• Vacuum Pressure Capability: 500 Microns
• External Leak Rate: <0.1 Ounces of Helium per Year at Operating Pressure Range
• Vibration Resistance: Conforms to UL109
• Fitting Body Material: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
• O-Ring Material: HNBR
• UL Listed: SA7511 Approved use for field and factory installations
• Standards: ASHRAE-15, ANSI 15, ASME B31.5, ANSI 31.5
• Refrigerant Type: R-410A
• Harmonize Code: 7412.10.0000
• Country of Origin: KOREA, REPUBLIC OF
