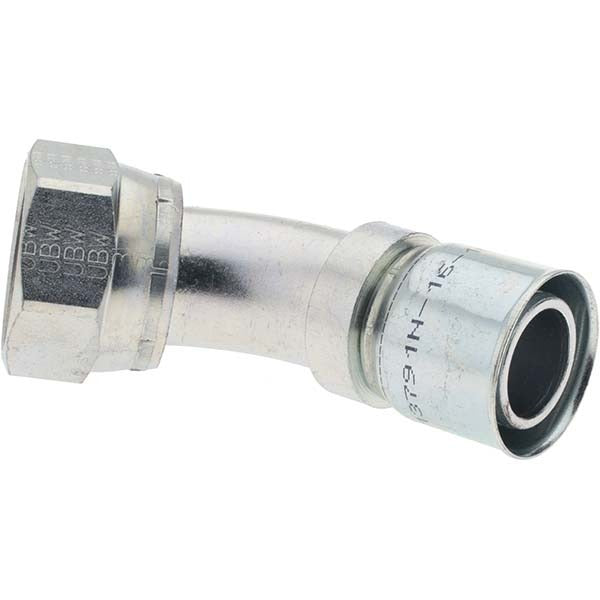

Parker PX-00276 Female Jic Swivel 45 Deg Elbow Fitting

Product Description

The PARKER PX-00276 is a female JIC swivel 45-degree elbow fitting designed for hydraulic hose assemblies. It connects a 7/8-inch hose to a 1-5/16-12 inch threaded port, allowing the line to exit at a 45-degree angle to reduce stress on the hose and improve routing in tight spaces. Constructed from steel, this fitting is built for the pressure demands of hydraulic systems. It is installed by hydraulic technicians, millwrights, and mobile equipment mechanics working on fluid power circuits requiring angled terminations.

This fitting is suited for hydraulic systems where straight inline connections are not practical due to space constraints or bend radius limitations. The 45-degree elbow orientation helps avoid sharp hose bends near the port, extending hose service life. Typical applications include mobile hydraulic equipment, industrial machinery, and any hydraulic circuit using 14 mm hose with a 1-5/16-12 JIC port. The swivel feature allows the fitting body to rotate during assembly, simplifying installation without twisting the hose.

Key Features

• Female JIC swivel design allows rotation during assembly to prevent hose twist
• 45-degree elbow angle improves hose routing in confined or obstructed spaces
• Steel construction for durability in high-pressure hydraulic service
• Hose size 14 mm with 7/8-inch hose diameter compatibility
• 1-5/16-12 inch thread size for JIC port connections
• Sold in packages of 2 units

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using 14 mm hose with a 1-5/16-12 female JIC swivel port connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic. Depressurize the hydraulic system fully and relieve all residual pressure before removing or installing any fittings. Use appropriate wrenches to torque the fitting to the system manufacturer specifications — do not over-tighten JIC swivel fittings. Inspect the JIC seating surface for damage before assembly and verify thread engagement before returning the system to service.
