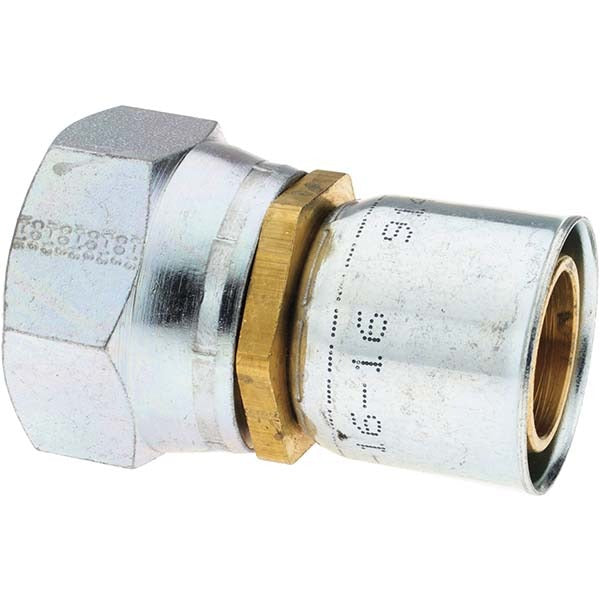

Parker PX-00272 Female Jic 37 Swivel Fitting 7/8 in Brass

Product Description

The PARKER PX-00272 is a straight female JIC 37-degree swivel fitting designed for hydraulic hose assemblies. It connects hose ends to hydraulic system components using a 1-5/16-12 inch threaded interface and a swivel design that allows rotational adjustment during installation without twisting the hose. The fitting accommodates a 7/8 inch (0.875 inch) inside diameter hose, corresponds to a hose size designation of 14, and is machined from brass for compatibility with hydraulic fluid service. This fitting is installed by hydraulic system technicians and fluid power mechanics in industrial, mobile equipment, and heavy-duty applications.

This fitting is suited for hydraulic hose assemblies where a straight female JIC 37-degree flare connection is required at the hose end. The swivel feature simplifies routing in tight or angled installations by allowing the body to rotate independently of the hose during tightening. It is a common selection for replacement or new assembly work on mobile hydraulic circuits, industrial hydraulic lines, and fluid transfer systems requiring a JIC-standard flare seat connection. The fitting ships in a package quantity of two.

Key Features

• Straight female JIC 37-degree swivel configuration for hose-end termination
• 7/8 inch (0.875 inch) hose inside diameter, hose size 14
• 1-5/16-12 inch thread size for mating to JIC-standard male fittings
• Brass construction for hydraulic fluid compatibility
• Swivel design prevents hose twist during assembly and routing
• Overall length of 2.45 inches for compact installation clearance

Compatibility

Designed as a replacement or assembly fitting for hydraulic hose lines using 7/8 inch inside diameter hose with a JIC 37-degree flare connection standard. Belongs to Parker Series 91N.

Installation Notes

Installation is performed by qualified hydraulic technicians or fluid power mechanics. Depressurize and isolate the hydraulic circuit completely before disassembling any fittings or hose ends. Inspect the JIC flare seat on the mating male fitting for nicks or damage before assembly. Follow the fitting manufacturer's published assembly procedures and applicable fluid power standards for proper swivel fitting make-up.
