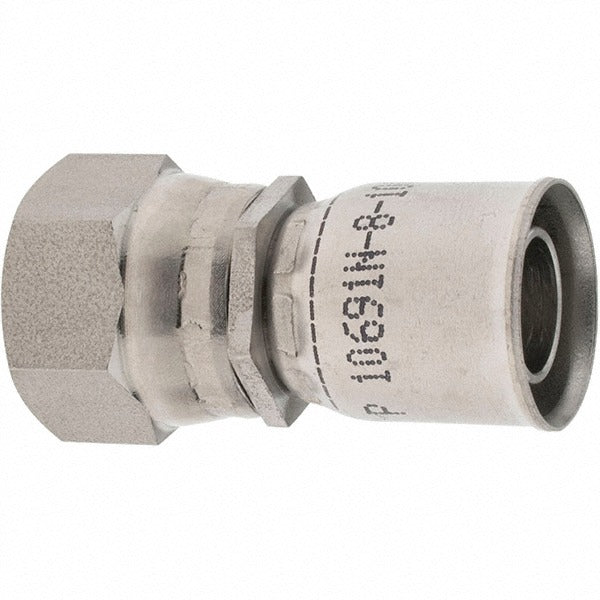

Parker PX-00268 Female Jic 37 Deg Swivel Fitting 0.5 in Id

Product Description

The PARKER PX-00268 is a straight female JIC 37-degree swivel fitting designed for hydraulic hose assemblies. It connects a 0.5-inch inside diameter hose to a threaded port using a 3/4-16 inch thread size. The swivel design allows the fitting to rotate during installation, reducing hose twist and assembly stress. Constructed from stainless steel, this fitting is suited for hydraulic systems that require corrosion resistance or compatibility with aggressive media. Overall length is 1.86 inches. Hydraulic technicians and fluid power mechanics install this type of fitting in industrial and mobile hydraulic circuits.

This fitting is used in hydraulic hose assemblies where a straight female JIC 37-degree swivel termination is required. It is rated for the Parker 91N series and fits a hose with a 5/8-inch outside diameter and 0.5-inch inside diameter. Typical applications include industrial machinery, mobile equipment hydraulic lines, and fluid transfer systems that require leak-resistant threaded connections. This fitting is packaged in a quantity of two units per package.

Key Features

• 37-degree JIC swivel seat for reliable, leak-resistant threaded connections
• Straight body orientation simplifies inline hose-to-port routing
• Stainless steel construction for corrosion resistance in demanding hydraulic environments
• Swivel design reduces hose twist during tightening and installation
• 3/4-16 inch thread size for compatibility with standard JIC hydraulic ports
• Packaged two units per package with a minimum order quantity of one

Compatibility

Designed for use with hydraulic hose assemblies requiring a straight female JIC 37-degree swivel fitting with a 0.5-inch inside diameter and 3/4-16 inch thread size. Fits Parker 91N series hose end applications.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Use appropriate hose assembly tooling and follow the fitting manufacturer torque guidelines from your system documentation. Inspect seating surfaces for damage before assembly to ensure a leak-free connection.
