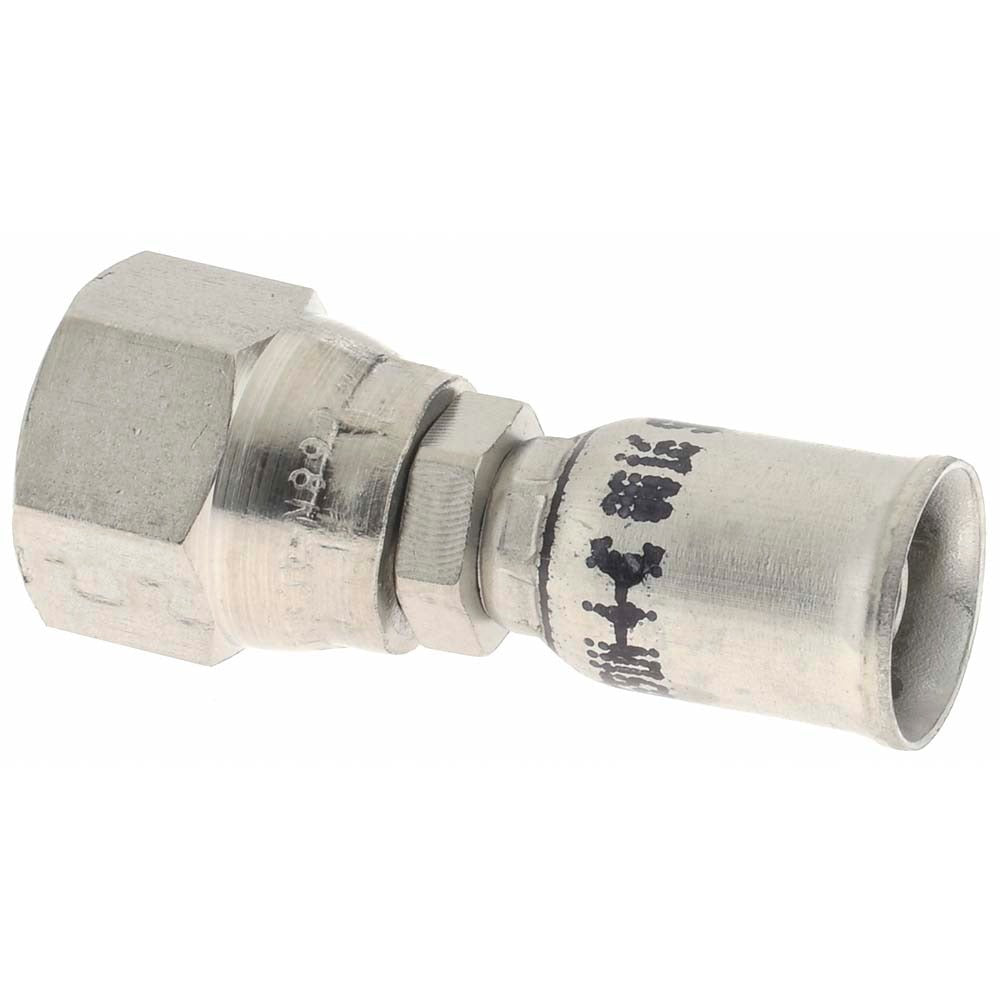

Parker PX-00264 Female Jic 37 Swivel Fitting 0.1875 in

Product Description

The PARKER PX-00264 is a straight female JIC 37-degree swivel hose fitting manufactured from stainless steel. It is designed for use in hydraulic systems where a secure, leak-resistant threaded connection is required at the hose end. The fitting accepts a 1/4-inch (0.1875-inch ID) hydraulic hose and uses a 7/16-20 thread size. The JIC 37-degree flare seat provides a reliable metal-to-metal seal suitable for high-pressure hydraulic fluid lines. The swivel design allows for easier assembly and reduces stress on the hose during installation. Licensed hydraulic and fluid power technicians are the typical installers for this type of fitting.

This fitting is intended for use with Parker 919 hose (Series 91/91N) in hydraulic plumbing applications. It is suited for both mobile and industrial hydraulic systems where a straight, female JIC swivel end connection is required at a hose termination point. The 1/4-inch hose size and 7/16-20 thread make it a common selection for smaller-bore hydraulic circuits operating in tight routing conditions. This fitting ships in a package quantity of two.

Key Features

• 37-degree JIC flare seat provides a metal-to-metal seal without additional sealants
• Swivel design simplifies hose routing and reduces assembly torque on the hose
• Stainless steel construction offers corrosion resistance in demanding environments
• 7/16-20 thread size compatible with standard JIC hydraulic fittings
• 1.43-inch overall length suits compact installation spaces
• Designed specifically for use with Parker 919 hose, Series 91/91N

Compatibility

Designed for use with Parker 919 hydraulic hose, Series 91/91N, with a 1/4-inch (0.1875-inch ID) hose inside diameter and 7/16-20 thread size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and fully isolate the hydraulic system before disconnecting or assembling any fittings. Inspect the JIC 37-degree flare seat and mating surface for damage or debris before assembly. Follow the fitting and hose manufacturer guidelines for proper assembly procedures to ensure a leak-free connection.
