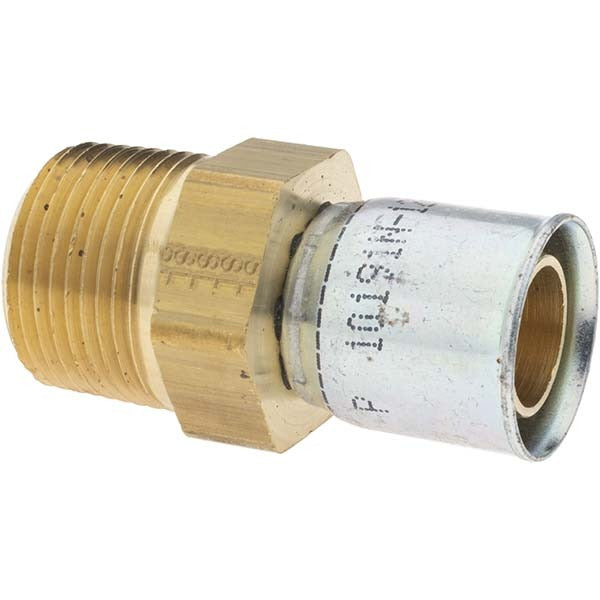

Parker PX-00024 Hydraulic Hose Male Rigid Fitting

Product Description

The PARKER PX-00024 is a male rigid straight fitting designed for hydraulic hose assemblies requiring a secure, leak-resistant threaded connection. Machined from brass, this fitting features a 3/4-14 Male NPTF thread and accepts hose with a 5/8 inch (0.625 inch) inside diameter. The straight configuration and threaded connection style make it a standard choice for assembling or repairing hydraulic lines in mobile equipment, industrial machinery, and fluid power systems. Installation is performed by licensed hydraulic technicians and fluid power specialists working on high-pressure hose assemblies.

This fitting is suited for use in hydraulic hose assemblies where a Male NPTF threaded port connection is required at the hose-end interface. The 10 mm hose size designation and 5/8 inch ID rating correspond to standard hydraulic hose sizing used across a wide range of low- to medium-pressure fluid power circuits. Its brass construction offers adequate corrosion resistance for hydraulic oil and compatible fluid media in both stationary and mobile applications.

Key Features

• Male NPTF threaded shaft provides a pressure-tight, dry-seal connection without secondary sealant
• Brass construction offers corrosion resistance compatible with hydraulic oils and common fluid media
• Straight rigid configuration maintains a fixed hose routing angle at the connection point
• 3/4-14 thread size is a widely used hydraulic port standard, simplifying replacement sourcing
• Compact overall length of 2.19 inches suits installations with limited clearance
• Part of the Parker 91N series, consistent with OEM replacement and fleet standardization needs

Compatibility

Designed as an OEM-style replacement rigid hose end fitting for hydraulic hose assemblies requiring a 5/8 inch ID hose connection with a 3/4-14 Male NPTF threaded interface.

Installation Notes

Installation of hydraulic hose fittings should be performed by a qualified fluid power technician or hydraulic specialist. Depressurize and isolate the hydraulic circuit completely before disassembling any hose or fitting. Male NPTF threads are designed as dry-seal connections; inspect threads for damage before assembly and avoid over-tightening, which can crack brass fittings. Follow equipment manufacturer guidelines and applicable fluid power standards for assembly procedure and hose routing.
