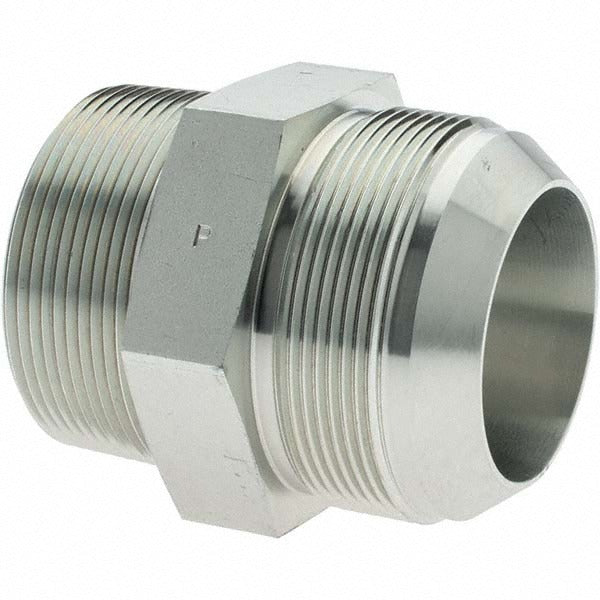

Parker PT-01129 Steel Flared Tube Connector 2in 37 Flare

Product Description

The PARKER PT-01129 is a steel flared tube connector designed for high-pressure hydraulic and fluid system applications. It features a 37-degree flare angle with Flare x MNPTF end connections, conforming to industry standards including ISO 8434-2, SAE 070102, and SAE J514. The connector accepts a 2-inch tube OD and is rated for a maximum dynamic working pressure of 2000 psi and a maximum working temperature of 500 degrees F. Fabricated from steel, this fitting is well suited for demanding industrial and mechanical fluid power installations. Licensed plumbers, pipefitters, and fluid power technicians are the primary installers of this type of connector.

This connector is used in hydraulic lines, fluid power circuits, and high-pressure tubing assemblies where a reliable 37-degree flared connection to a male NPTF threaded port is required. It is appropriate for both stationary and mobile equipment applications in commercial and industrial settings where working conditions approach the rated pressure and temperature limits of the fitting.

Key Features

• 37-degree flare angle with Flare x MNPTF end connections for secure, leak-resistant sealing
• Rated to 2000 psi maximum dynamic working pressure
• Rated to 500 degrees F maximum working temperature
• Steel construction for durability in high-pressure fluid power systems
• Compliant with ISO 8434-2, SAE 070102, and SAE J514 standards
• NPTF thread standard for pressure-tight thread engagement without sealant tape in many applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic and fluid power tubing assemblies requiring a 2-inch OD 37-degree flare to male NPTF threaded port connection, per SAE J514 and ISO 8434-2 specifications.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or fluid power technician familiar with SAE J514 flare fitting assembly procedures. Depressurize and isolate the fluid system completely before removing or installing any fittings. Use appropriate flare nut wrenches to avoid rounding the fitting; do not use pipe wrenches on flare fittings. Inspect flare surfaces for nicks or damage before assembly, as surface defects can cause joint leakage under pressure.
