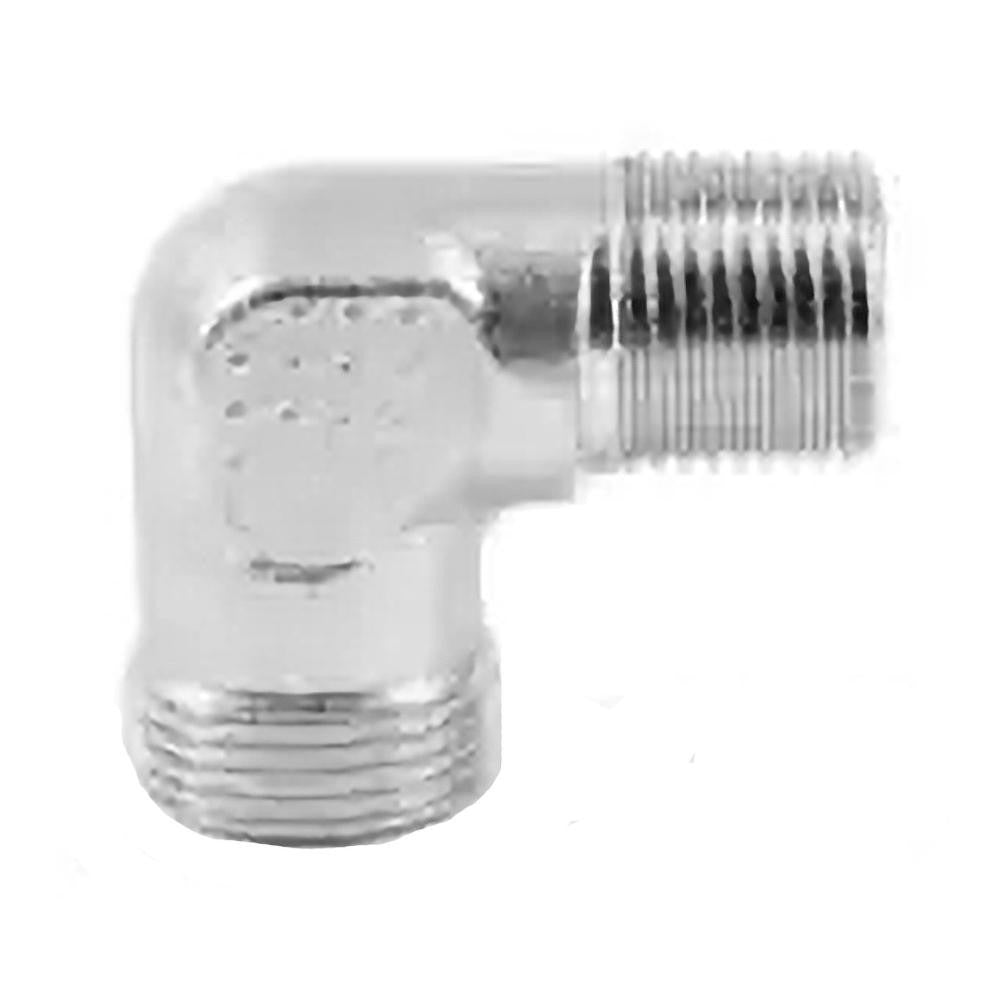

Parker PT-00887 Bite-type Tube 90 Elbow 12mm 3/8 Bspt Steel

Product Description

The PARKER PT-00887 is a flareless bite-type tube 90 degree elbow fitting designed for high-pressure hydraulic and instrumentation tubing systems. It uses a bite-type ferrule design that grips the tube OD mechanically, eliminating the need to flare the tube end before assembly. The fitting accepts 12 mm tube OD and threads into a 3/8 BSPT port. Constructed from steel, it is rated to a maximum working pressure of 315 bar. This type of fitting is installed by hydraulic technicians, pipefitters, and instrumentation specialists working on fluid power and process control lines.

Bite-type flareless fittings are widely used in industrial hydraulic systems, fluid power circuits, and instrumentation tubing runs where reliable, leak-free connections are required at elevated pressures. The 90 degree elbow configuration is suited for routing tubing around obstructions or making directional changes in tight equipment enclosures. This fitting is appropriate for both OEM assembly and field service applications. Sold in a package quantity of 5 units per order.

Key Features

• Flareless bite-type design grips tube OD mechanically without flaring
• 90 degree elbow body for directional tubing changes in confined spaces
• Rated to 315 bar maximum working pressure
• Accepts 12 mm tube OD with 3/8 BSPT male thread
• Steel construction for durability in hydraulic and fluid power environments
• Sold in a package of 5 units

Compatibility

Designed as an OEM-style and field-replacement bite-type tube fitting for hydraulic and instrumentation systems using 12 mm OD tubing and 3/8 BSPT ported components.

Installation Notes

Installation is performed by qualified hydraulic technicians or pipefitters. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings. Follow the fitting manufacturer assembly procedure for bite-type ferrule pre-swaging to ensure proper tube grip and seal. Verify thread type compatibility with the mating port before assembly, as BSPT threads are not interchangeable with NPT or BSPP threads.
