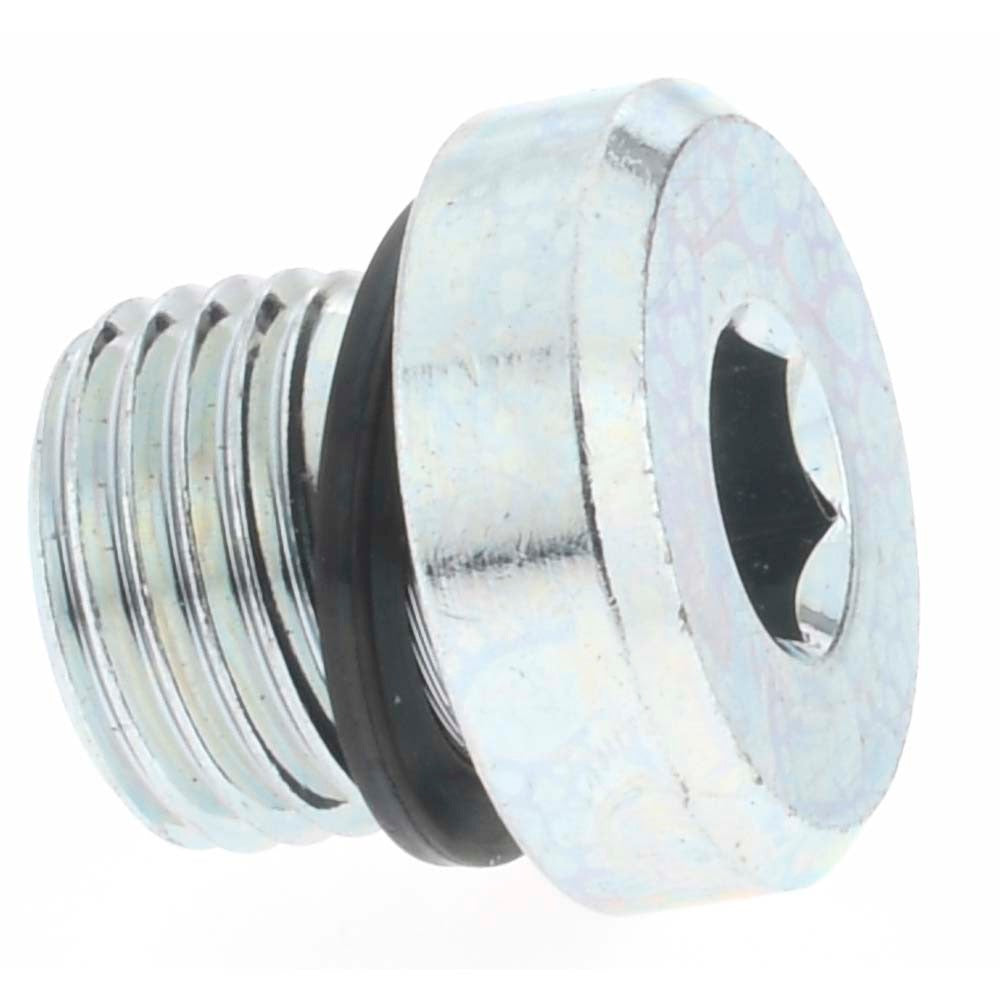

Parker PT-00845 Flareless Bite-type Tube Plug M10x1 Steel

Product Description

The PARKER PT-00845 is a flareless bite-type tube plug designed to seal hydraulic and fluid system tubing using a metric threaded connection. Threaded M10 x 1 metric, this steel plug terminates open tube ends in high-pressure systems, preventing fluid loss and contamination during service or system reconfiguration. It carries a maximum working pressure rating of 400 bar, making it suitable for demanding hydraulic circuit applications. With an overall length of 12.3 mm, the plug is compact and fits into tight plumbing runs. Installation is straightforward and does not require flaring of the tube end.

This tube plug is used in industrial hydraulic systems, fluid power circuits, and high-pressure plumbing assemblies where an open tube end must be capped. It is appropriate for both stationary and mobile hydraulic equipment. The bite-type design grips the tube mechanically on installation, making it a reliable choice for maintenance, reconfiguration, or temporary isolation of a hydraulic line. Installed by hydraulic technicians, maintenance mechanics, and fluid power specialists in commercial and industrial settings.

Key Features

• Flareless bite-type design eliminates the need for tube flaring before installation
• M10 x 1 metric thread for compatibility with metric hydraulic fittings
• 400 bar maximum working pressure rating for high-pressure circuit use
• Steel construction for durability in demanding fluid system environments
• Compact overall length of 12.3 mm suits tight installation spaces
• Sold in packages of 5 units per package

Compatibility

Designed as an OEM-style replacement or service component for metric flareless bite-type hydraulic tube fitting systems using M10 x 1 threaded connections.

Installation Notes

This plug is installed by qualified hydraulic technicians or fluid power mechanics. Before installation, depressurize the hydraulic system completely and relieve any stored fluid pressure according to equipment lockout/tagout procedures. Ensure the tube end is clean, cut square, and free of burrs before engaging the bite-type fitting. Follow the fitting manufacturer torque and assembly procedure; do not overtighten, as this can damage the bite ring and compromise the seal.
