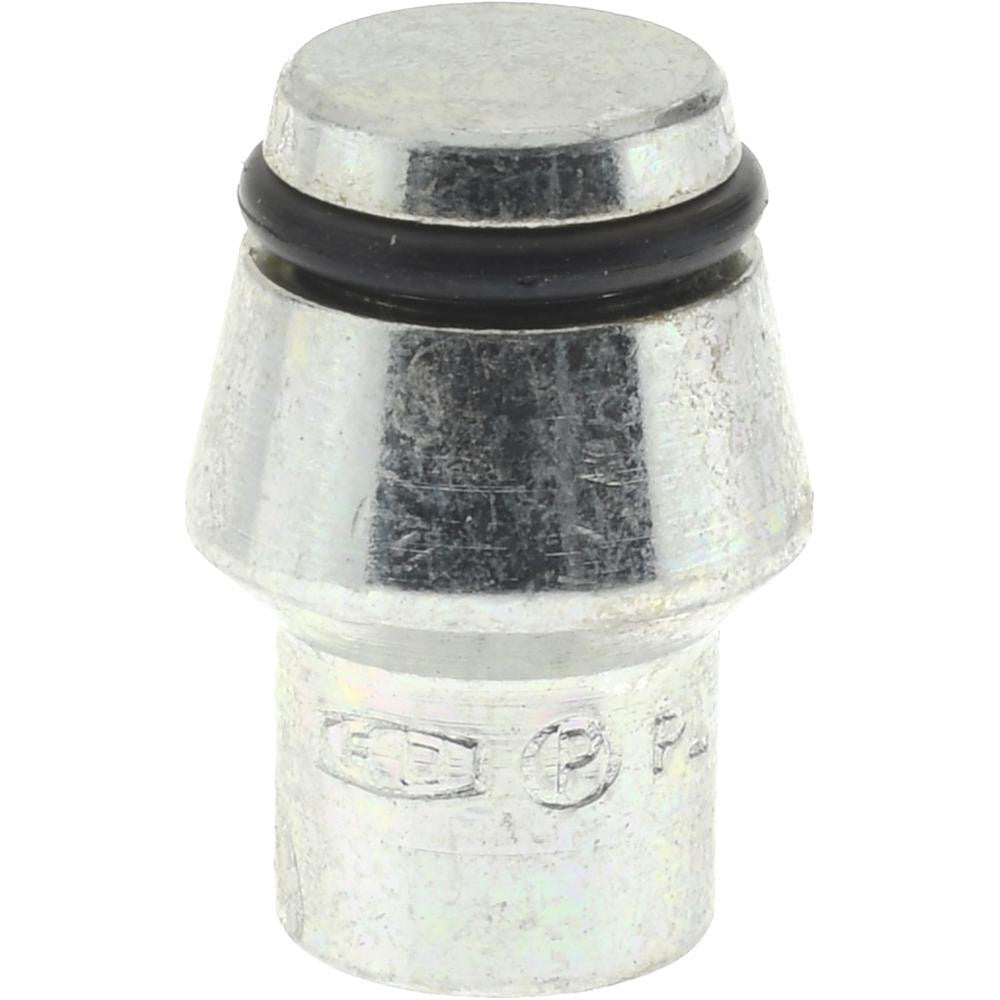

Parker PT-00830 Flareless Bite-type Tube Cap 6 Mm Steel

Product Description

The PARKER PT-00830 is a flareless bite-type tube cap designed to seal the open end of a 6 mm OD tube in hydraulic and instrumentation tubing systems. Constructed from steel, this cap uses the bite-type (compression ferrule) fitting design to create a leak-resistant seal without requiring tube flaring. It is rated to a maximum working pressure of 500 bar. With an overall length of 18.5 mm, the PT-00830 is a compact fitting suited for high-pressure fluid and gas line termination. It is typically installed by licensed pipefitters, hydraulic technicians, and instrumentation mechanics working on industrial or process-control systems.

This tube cap is used in flareless bite-type tubing systems where an open tube end must be capped, isolated, or blanked off during service, testing, or system modification. It is appropriate for both permanent and temporary terminations in high-pressure hydraulic circuits, pneumatic instrumentation lines, and process-control tubing assemblies. The 6 mm tube OD size is common in metric instrumentation and industrial hydraulic applications. Packaged in quantities of 5, making it practical for service kits and field stock.

Key Features

• Flareless bite-type design eliminates the need for tube flaring before installation
• Rated to 500 bar maximum working pressure for demanding high-pressure applications
• Steel construction provides durability in hydraulic and industrial environments
• Compact overall length of 18.5 mm suits tight installation spaces
• Fits 6 mm OD tubing, a standard size in metric hydraulic and instrumentation systems
• Packaged in quantities of 5 for convenient field and shop stock

Compatibility

Designed as an OEM-style replacement or service fitting for flareless bite-type tube fitting systems using 6 mm OD tubing.

Installation Notes

Installation should be performed by a qualified pipefitter or hydraulic technician familiar with flareless bite-type fitting assembly procedures. Depressurize and isolate the tubing circuit fully before removing any existing fittings or installing this cap. Follow the fitting manufacturer's prescribed presetting and make-up turn procedure for bite-type fittings to ensure the ferrule seats properly and the seal is leak-free. Do not overtighten, as this can damage the ferrule and compromise the pressure seal.
