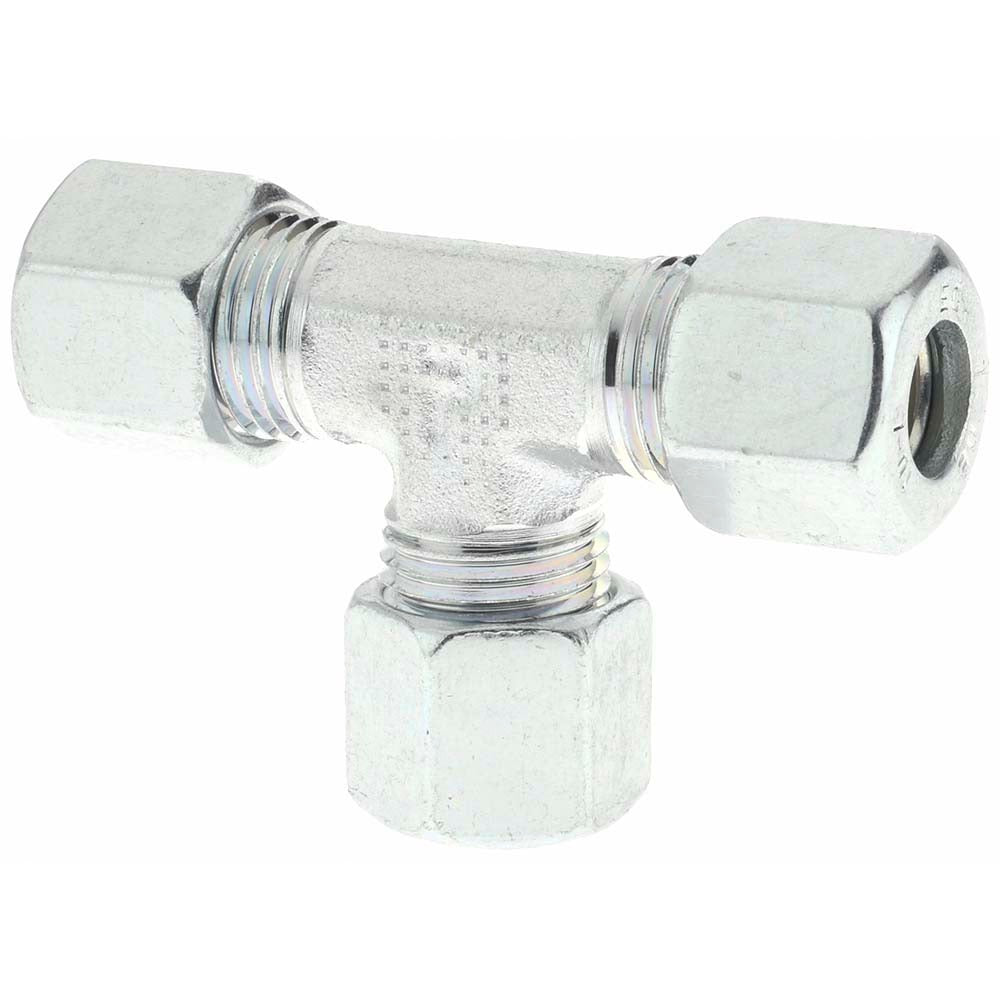

Parker PT-00816 Flareless Bite-type Tube Union Tee

Product Description

The PARKER PT-00816 is a flareless bite-type tube union tee designed for high-pressure hydraulic and fluid power tubing systems. This three-way union fitting connects three steel tube runs at a common junction without requiring tube flaring, relying instead on a bite-type ferrule that grips the tube OD on assembly. It accommodates a 10 mm tube outside diameter and is rated for a maximum working pressure of 500 bar. Constructed from steel for durability in demanding service environments, this fitting is installed by hydraulic technicians and fluid system mechanics in industrial and commercial applications.

This fitting is suited for use in high-pressure fluid conveyance systems where a three-way branch connection is required in a steel tubing circuit. Typical applications include hydraulic power units, mobile equipment hydraulics, and industrial fluid handling lines operating with 10 mm OD steel tubing. It is sold in a package quantity of 5 units, making it practical for service shops stocking standard metric fitting sizes.

Key Features

• Flareless bite-type design eliminates the need for tube flaring before assembly
• Rated for 500 bar maximum working pressure
• 10 mm tube outside diameter compatibility
• Steel construction for high-pressure and heavy-duty fluid system service
• Union tee configuration enables three-way inline branch connections
• Sold in packs of 5 for convenient shop stocking

Compatibility

Designed as an OEM-style replacement or service fitting for high-pressure hydraulic and fluid power systems using 10 mm OD steel tubing with flareless bite-type connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with flareless fitting assembly procedures. Depressurize and isolate the hydraulic circuit completely before disassembling any tubing connections. Follow the fitting manufacturer's prescribed pre-swaging or assembly procedure to ensure the ferrule seats correctly against the tube OD. Verify system pressure ratings are within the fitting's rated working pressure before returning the system to service.
