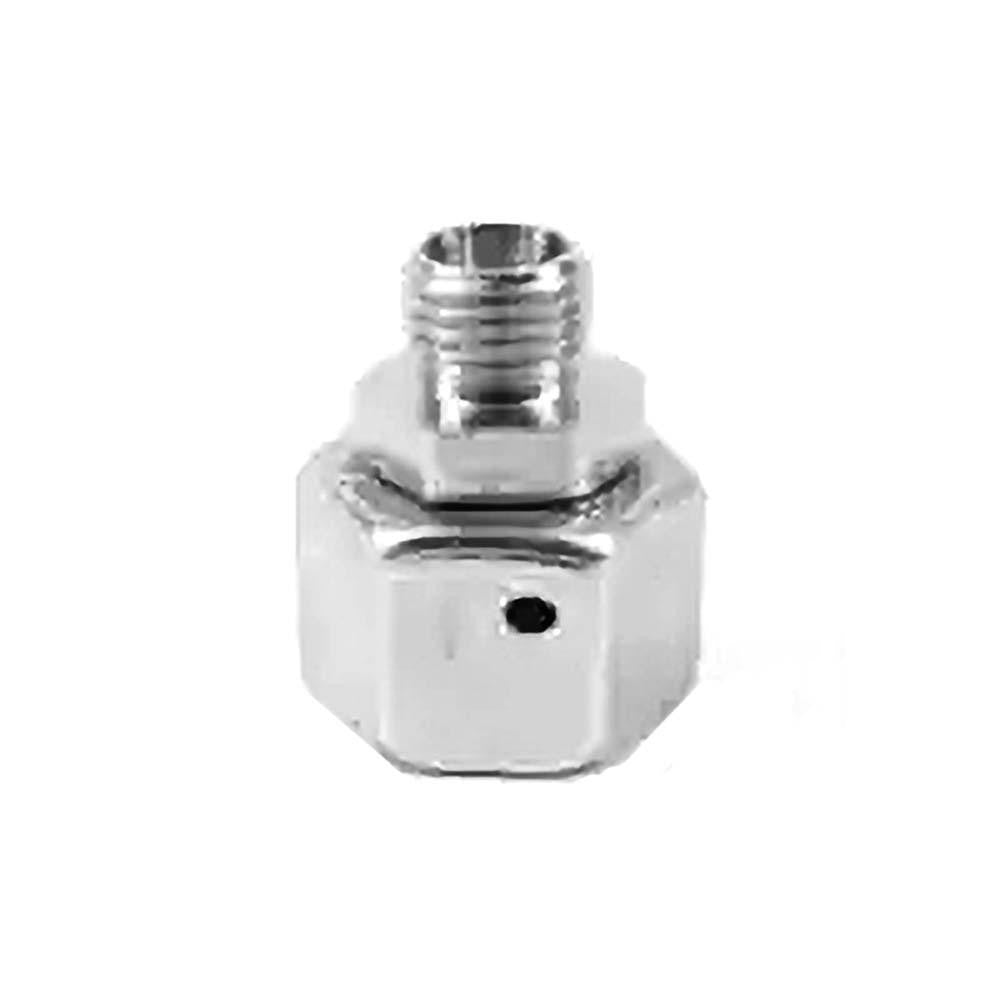

Parker PT-00714 Straight Tube End Reducer 10x8mm Steel

Product Description

The PARKER PT-00714 is a flareless bite-type straight tube end reducer designed for hydraulic and fluid power systems that require a step-down connection between two metric tube sizes. The fitting accepts a 10 mm OD tube on one end and reduces to an 8 mm OD tube on the other, using a bite-type grip that eliminates the need for tube flaring. Constructed from steel, it is rated for a maximum working pressure of 500 bar. At 32 mm overall length, it suits compact inline installations. Licensed hydraulic or fluid power technicians install this fitting in industrial, mobile, and process control plumbing circuits where tube routing requires a straight reducer without flare preparation.

This reducer is used in high-pressure hydraulic lines, lubrication systems, and pneumatic circuits that use metric DIN-style flareless fittings. The 10 x 8 mm sizing is common in European and metric-standard equipment found in industrial machinery, mobile equipment, and compressed-fluid distribution panels. It is packaged in a quantity of 2 units per pack, making it suitable for multiple connection points in a single service call or installation run.

Key Features

• Flareless bite-type design eliminates tube flaring for faster assembly
• Straight reducer configuration steps down from 10 mm OD to 8 mm OD in line
• Rated to 500 bar maximum working pressure for high-pressure hydraulic service
• Steel construction for durability in demanding fluid power environments
• 32 mm overall length supports compact plumbing layouts
• Packaged quantity of 2 suits multi-point installations

Compatibility

Designed as an OEM-style replacement or service fitting for metric flareless bite-type hydraulic and fluid power tube systems using 10 mm and 8 mm OD tubing per DIN-style standards.

Installation Notes

Installation should be performed by a qualified hydraulic or fluid power technician. Depressurize and isolate the hydraulic circuit fully before removing any existing fittings or connecting new ones. Ensure tube ends are cut cleanly and squarely, and that the tube is fully seated before tightening the nut to engage the bite ring. Follow the fitting manufacturer torque and assembly procedure for bite-type fittings to avoid under- or over-compression of the ferrule.
