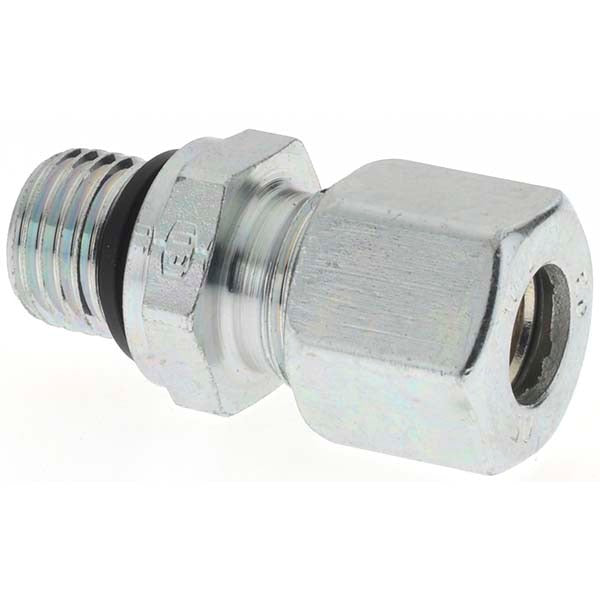

Parker PT-00586 Bite-type Tube Male Connector M14x1.5

Product Description

The PARKER PT-00586 is a flareless bite-type tube male connector designed for high-pressure hydraulic and fluid power applications. Manufactured from steel, this straight-body fitting accepts a 10 mm outside diameter tube and threads into a port with an M14 x 1.5 metric thread. The bite-type design uses a ferrule that deforms around the tube on assembly, eliminating the need to flare the tube end before installation. Maximum working pressure is rated at 500 bar. Overall length is 30 mm and the hex size is 19 mm, making it compatible with standard open-end wrenches. This connector is suited for licensed pipefitters, hydraulic technicians, and fluid power specialists working on industrial and mobile hydraulic systems.

This fitting is used in high-pressure plumbing lines where metric tube connections are required and tube flaring is not practical or desired. Typical installation scenarios include hydraulic power units, mobile equipment, and industrial machinery requiring a reliable, leak-resistant connection at moderate to high system pressures. The M14 x 1.5 thread pitch is common in European-standard hydraulic assemblies and metric-ported valves, cylinders, and manifolds.

Key Features

• Flareless bite-type design eliminates tube flaring before assembly
• Maximum working pressure of 500 bar for high-pressure hydraulic service
• M14 x 1.5 metric thread for compatibility with metric-ported hydraulic components
• Accepts 10 mm OD tubing for a secure, deformation-sealed connection
• Steel construction for strength and durability in industrial environments
• Straight fitting shape for direct in-line tube-to-port connections

Compatibility

Designed as an OEM-style replacement or new-installation component for high-pressure hydraulic and fluid power systems using 10 mm OD tubing with M14 x 1.5 metric threaded ports.

Installation Notes

Installation should be performed by a qualified pipefitter or hydraulic technician following the system manufacturer's assembly procedures for bite-type fittings, which typically require a pre-swaging or pre-assembly step to seat the ferrule before final installation. Depressurize and isolate the hydraulic circuit completely before disassembling or installing any fittings. Use a calibrated torque wrench and the 19 mm hex to avoid overtightening, which can damage the ferrule or thread. Follow applicable fluid power and plumbing codes for the jurisdiction and system type.
