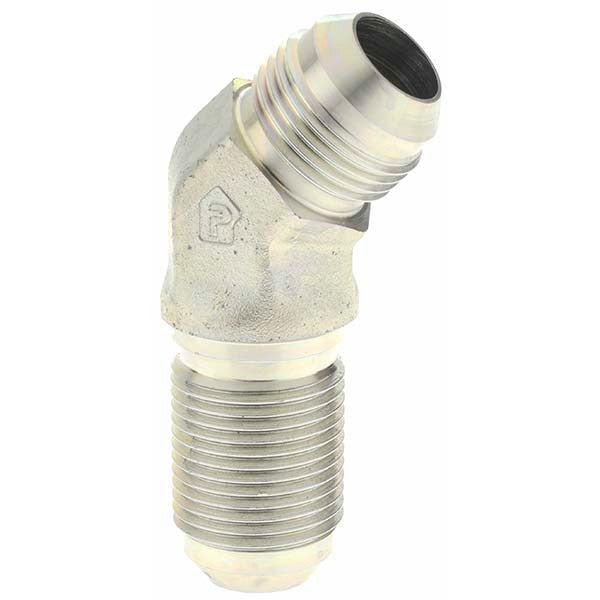

Parker PT-00399 Bulkhead Union 45 Elbow 3/4 in Tube Od

Product Description

The PARKER PT-00399 is a steel flared tube bulkhead union 45-degree elbow designed for high-pressure hydraulic and fluid power systems. It provides a flare-to-flare end connection with a 37-degree flare angle, allowing a tube line to pass through a panel or bulkhead at a 45-degree angle while maintaining a rated maximum working pressure of 5,000 psi. Constructed from steel, this fitting is built to withstand demanding industrial and mobile equipment environments. It ships in a package quantity of two. Licensed tradespeople and fluid power specialists typically install this fitting during system assembly or panel-mount plumbing work.

This fitting is suited for hydraulic tubing runs that must penetrate a bulkhead or panel at a 45-degree angle in industrial machinery, mobile hydraulic systems, and fluid power equipment. The 3/4-inch tube outside diameter and 37-degree flare angle match standard JIC-style flared tubing connections commonly used in high-pressure hydraulic circuits. It is installed wherever a clean, leak-resistant bulkhead passage is needed without modifying tubing routing angles.

Key Features

• 45-degree bulkhead union elbow routes tubing through panels at a controlled angle
• 37-degree flare angle matches standard JIC flared tubing connections
• Rated to 5,000 psi maximum working pressure for high-pressure hydraulic service
• Flare x flare end connections on both sides for consistent tube attachment
• Steel construction provides durability in industrial and mobile equipment applications
• Package quantity of two per order

Compatibility

Designed as an OEM-style replacement or new-installation fitting for high-pressure hydraulic and fluid power tubing systems using 3/4-inch OD tubing with a 37-degree flare angle at the connection ends.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter. Depressurize and lock out the hydraulic system completely before removing or installing any fittings. Ensure mating tube ends are properly flared to the correct 37-degree angle and are free of burrs or damage before tightening. Follow applicable fluid power system codes and the equipment manufacturer guidelines for fitting torque and system pressure testing after installation.
