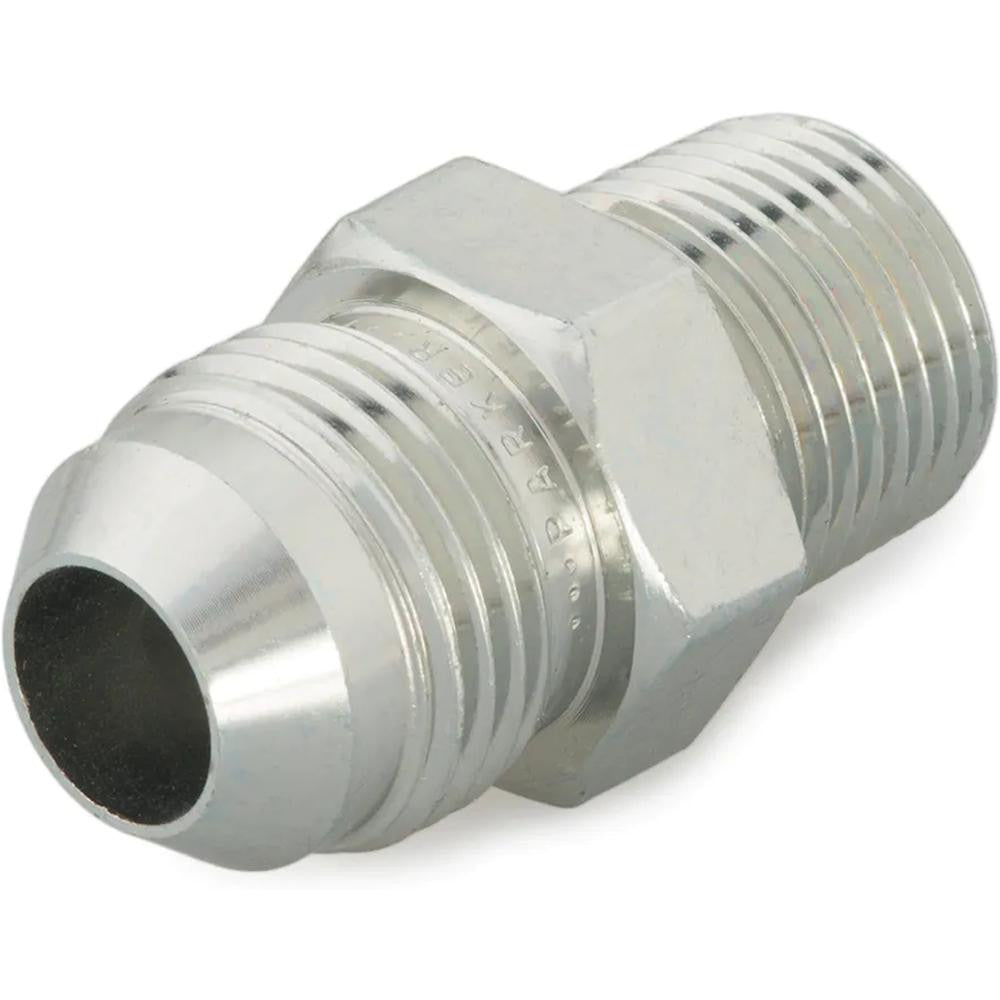

Parker PT-00280 Ss Flared Tube Male Adapter 1 in Nptf

Product Description

The PARKER PT-00280 is a stainless steel flared tube male adapter designed to connect 37-degree flared tube lines to NPTF threaded ports. It features a 1-inch tube outside diameter and a 1-11-1/2 NPTF thread size, with an overall length of 2.3 inches. The end connection configuration is Flare x NPTF. Built from stainless steel, this fitting handles a maximum working pressure of 2,000 psi static and 4,500 psi dynamic, with a temperature range of -425 degrees F to 1,200 degrees F. It is installed by licensed plumbers, pipefitters, and HVAC technicians in demanding fluid and gas handling systems.

This adapter is suited for use in high-pressure hydraulic, pneumatic, refrigeration, and industrial fluid systems where a reliable transition from a 37-degree flared tube to a male NPTF port is required. It performs in both low-temperature cryogenic environments and high-temperature process applications. The stainless steel construction makes it appropriate for corrosive media and environments. Sold in a package quantity of 2.

Key Features

• 37-degree flare angle per SAE J514 and ISO 8434-2 standards
• NPTF male thread provides a pressure-tight mechanical seal without sealant tape on conforming female ports
• Stainless steel construction resists corrosion and handles extreme temperature ranges
• Static working pressure rated to 2,000 psi; dynamic working pressure rated to 4,500 psi
• Wide service temperature range: -425 degrees F to 1,200 degrees F
• Meets ISO 8434-2, SAE 070102, and SAE J514 standards

Compatibility

Designed as an OEM-style replacement or direct-install fitting for systems using 37-degree flared tube connections terminating to 1-11-1/2 NPTF male ports.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or HVAC technician. Depressurize and isolate the system completely before removing or installing any fittings. Inspect flare seat and thread engagement before torquing; do not cross-thread NPTF connections. NPTF threads are designed to seal on the threads themselves, but always verify system leak integrity after installation per applicable codes including IFGC or applicable hydraulic system standards.
