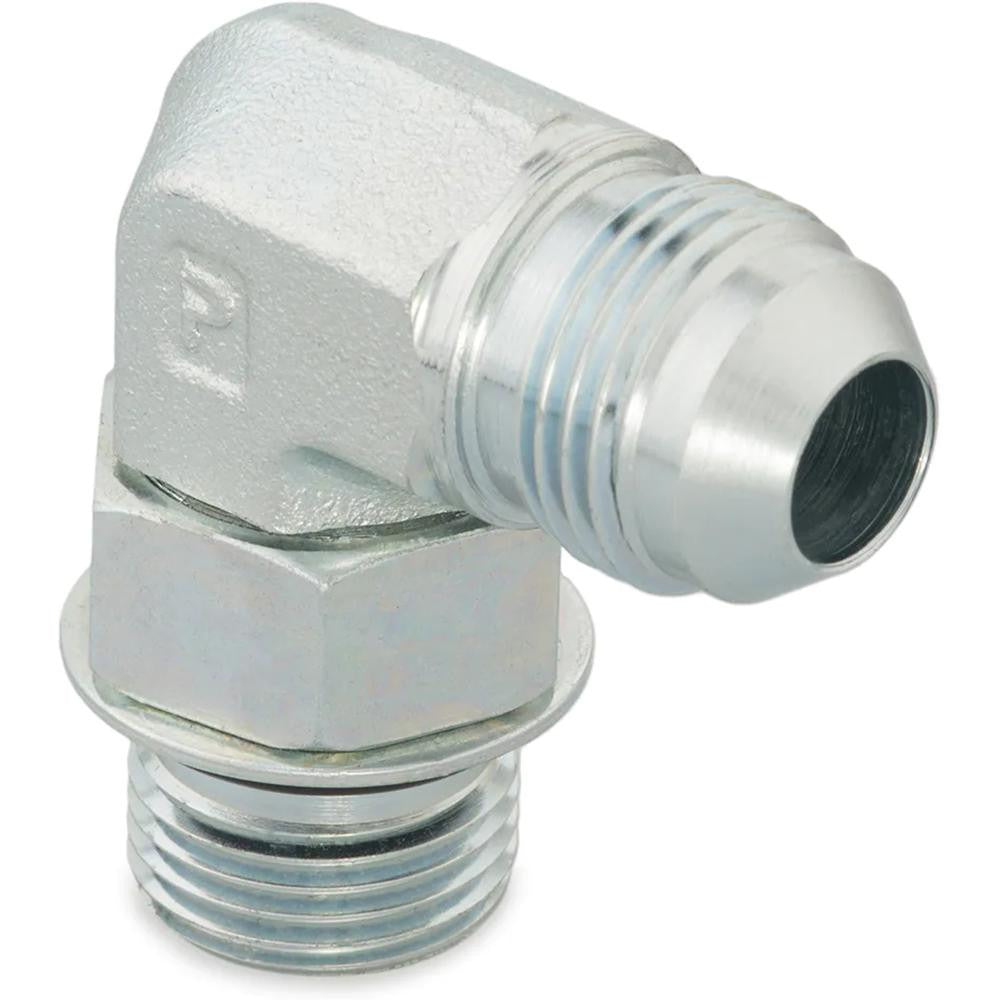

Parker PT-00207 Steel 90 Elbow Fitting 5/8 in Od 3/4-16 Orb

Product Description

The PARKER PT-00207 is a 90-degree flared tube elbow fitting machined from steel and designed for use in hydraulic and fluid-power lines where a right-angle directional change is required. The fitting connects a 37-degree flare end to an O-ring boss (ORB) port, providing a secure, leak-resistant joint suitable for high-pressure service. It accommodates a 5/8-inch tube OD and a 3/4-16 thread size. With a maximum working pressure of 5000 psi and a maximum working temperature of 500 degrees F, this fitting is built for demanding industrial and mobile hydraulic applications. Installation is handled by qualified fluid-power or hydraulic system technicians.

This fitting is suited for use in hydraulic plumbing circuits where a tube line must transition to an ORB-ported component such as a pump, valve, manifold, or cylinder. The 37-degree flare connection is a common standard in industrial, mobile, and OEM hydraulic assemblies. It is appropriate for both new system builds and repair or replacement work in existing hydraulic circuits operating within the rated pressure and temperature envelope.

Key Features

• 90-degree elbow configuration routes tube lines at a right angle without field bending
• 37-degree flare x ORB end connection for secure, leak-resistant joints at high pressure
• 5/8-inch tube OD and 3/4-16 thread size for standard hydraulic plumbing fitment
• Rated to 5000 psi maximum working pressure and 500 degrees F maximum working temperature
• Steel construction provides strength and durability in industrial hydraulic service
• Meets ISO 8434-2, SAE J514, and SAE 070220 standards

Compatibility

Designed for use with 5/8-inch OD hydraulic tubing terminated with a 37-degree flare, mating to components with a 3/4-16 ORB port. Specific system compatibility should be verified against the application pressure, temperature, and fluid requirements prior to installation.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the flare and O-ring seating surfaces for damage before assembly, and use a new O-ring lubricated with system fluid at the ORB end. Follow SAE J514 and applicable system OEM specifications for assembly torque and thread engagement.
