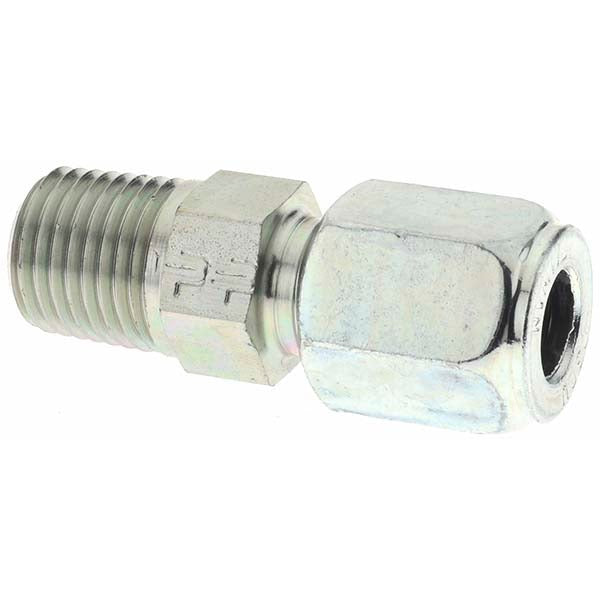

Parker PT-00102 Bite-type Male Connector 5/16 in 1/4 Nptf

Product Description

The PARKER PT-00102 is a flareless bite-type male tube connector designed to create a secure, leak-resistant connection between tubing and a threaded port. The fitting uses a bite-type ferrule mechanism that grips the outer diameter of the tube without requiring flaring, making field assembly faster and more reliable in tight spaces. It carries a 1/4 inch NPTF male thread on the port end and accepts 5/16 inch OD tubing on the tube end. This type of fitting is commonly installed by HVAC technicians, plumbers, and industrial piping mechanics working with hydraulic, pneumatic, or fluid-transfer lines.

This connector is suited for residential and light commercial applications where flareless tube connections are required at a threaded male port. Typical install scenarios include refrigeration line sets, hydraulic control circuits, pneumatic systems, and general fluid conveyance where tube routing meets a fixed threaded inlet or outlet. The NPTF thread form provides a dry-seal connection, reducing reliance on additional thread sealant in many applications.

Key Features

• Flareless bite-type design eliminates the need for tube flaring during assembly
• 1/4 inch NPTF male thread provides a dry-seal threaded port connection
• Accepts 5/16 inch OD tubing for a secure ferrule grip
• Compact geometry suitable for installations with limited clearance
• Sold in a package quantity of 5 units per order

Compatibility

Designed as an OEM-style replacement or service fitting for systems requiring a flareless male tube connector with 5/16 inch OD tube and 1/4 inch NPTF threaded port connections in hydraulic, pneumatic, or fluid-transfer piping assemblies.

Installation Notes

Installation should be performed by a qualified technician familiar with flareless tube fitting assembly procedures. Depressurize and isolate the line before disassembly or installation. Ensure tubing is cut cleanly and deburred before inserting into the fitting to allow the bite-type ferrule to seat correctly. Consult applicable codes such as ASME B31.1 or B31.3 for pressure piping system requirements.
