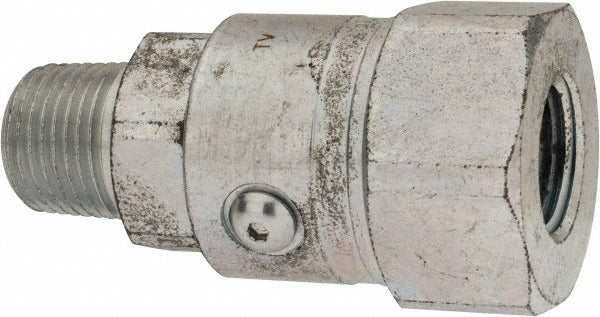

Parker PS810102-8-8 Npt Swivel Fitting 5000 Psi 1/2 in

Product Description

The PARKER PS810102-8-8 is a straight inline male NPT to female NPT swivel fitting designed for hydraulic hose assemblies operating at high pressure. Rated to 5,000 psi maximum working pressure, this fitting allows the female NPT end to rotate freely during installation, reducing hose twist and assembly stress. The body is machined steel with a 1/2 inch body diameter and a 1/2-14 thread size on both ends. Overall length is 3.03 inches. It is part of PARKER's PS series and is installed by hydraulic system technicians in industrial, mobile, and fluid power applications.

This fitting is suited for hydraulic hose fabrication and repair where a swivel connection is needed at the termination point. The inline straight configuration makes it a direct, compact solution for tight routing scenarios. Typical installations include hydraulic cylinders, pumps, valves, and manifold assemblies in both stationary and mobile equipment. The threaded connection type works with standard NPT-ported components common across industrial and construction machinery.

Key Features

• 5,000 psi maximum working pressure for high-pressure hydraulic circuits
• Female NPT swivel end reduces hose twist during make-up and service
• Steel construction for durability in demanding fluid power environments
• 1/2-14 NPT thread size on both male and female ends
• Straight inline configuration minimizes overall assembly length
• Part of the PARKER PS series for consistent performance across hose fittings

Compatibility

Designed as an OEM-style hydraulic hose fitting for use with 1/2 inch hose assemblies and NPT-ported hydraulic components requiring a swivel termination.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power system requirements. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Apply thread sealant appropriate for hydraulic service to NPT threads; do not over-tighten, as NPT threads are tapered and susceptible to cracking under excess torque. Inspect the swivel for free rotation and confirm there are no leaks before returning the system to service.
