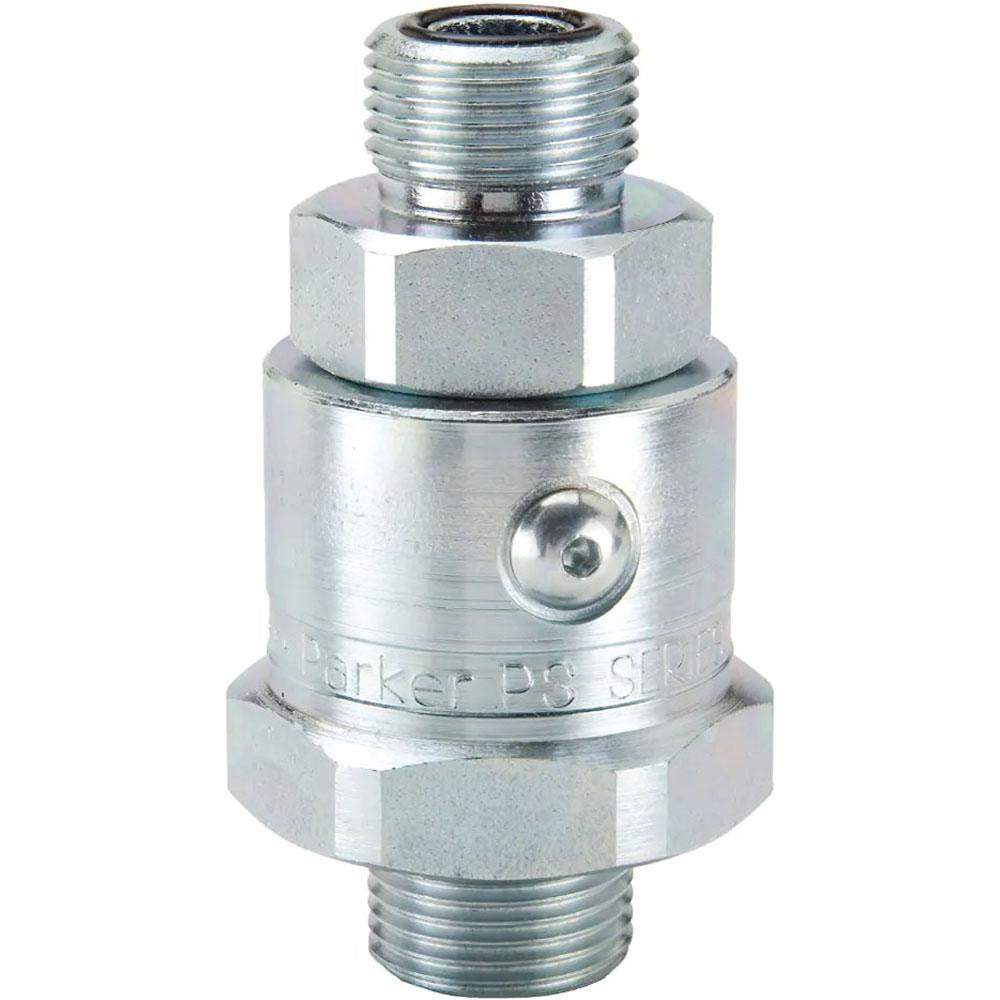

Parker PS61JMJM-6-6 Male Orfs Swivel Fitting 5000 Psi

Product Description

The PARKER PS61JMJM-6-6 is a male ORFS swivel fitting designed for high-pressure hydraulic hose assemblies. Part of the Parker PS Series, it uses a Male Seal-Lok ORFS (O-Ring Face Seal) thread interface with an 11/16-16 thread size and a 3/8 inch hose size. The straight inline configuration makes it a direct-connection option in tight or space-constrained hydraulic plumbing runs. Rated to 5,000 psi maximum working pressure, this steel fitting handles demanding fluid power applications where leak-free face-seal connections are required. It weighs 0.66 pounds and measures 2.67 inches in overall length.

This fitting is suited for industrial and mobile hydraulic systems where ORFS face-seal connections are specified. Typical applications include construction equipment, agricultural machinery, manufacturing hydraulics, and any fluid power circuit requiring a reliable swivel hose termination. The swivel design allows the hose to be positioned during assembly without twisting the hose body, reducing stress at the connection point. Installation is performed by licensed hydraulic technicians or qualified fluid power mechanics in both shop and field environments.

Key Features

• Male ORFS (O-Ring Face Seal) swivel interface for leak-free, high-pressure connections
• 5,000 psi maximum working pressure rating
• Straight inline configuration for direct hose-to-port routing
• Steel construction for durability in demanding hydraulic environments
• 11/16-16 thread size with 3/8 inch hose compatibility
• Compact overall length of 2.67 inches for space-constrained installations

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies requiring a 3/8 inch Male Seal-Lok ORFS swivel connection in the Parker PS Series.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and de-energize the hydraulic system completely before disconnecting or installing any fittings. Inspect the O-ring sealing face for damage before assembly and ensure the O-ring is properly seated to achieve a leak-free connection. Follow applicable industry standards and equipment manufacturer torque specifications when tightening ORFS fittings.
