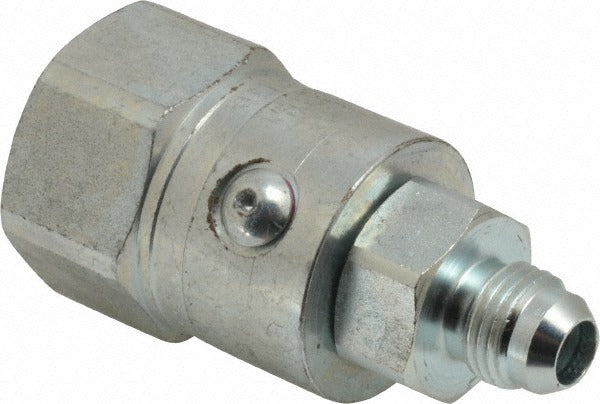

Parker PS610306-6-6 Male Jic Female Jic Swivel Fitting 5000 Psi

Product Description

The PARKER PS610306-6-6 is a straight inline hydraulic hose fitting that transitions from a male JIC 37-degree flare on one end to a female JIC 37-degree flare swivel on the other. Machined from steel, this fitting is rated to 5,000 psi working pressure and carries a 3/8-inch hose size with a 3/8-18 thread. The swivel configuration on the female end allows for easy alignment and makeup without twisting the hose. It measures 2.77 inches in overall length and weighs 0.75 pounds. HVAC/R technicians, hydraulic system mechanics, and fluid power specialists install this fitting where a secure, leak-resistant JIC connection is required in high-pressure hydraulic circuits.

This fitting is suited for use in mobile hydraulic equipment, industrial machinery, and high-pressure fluid transfer systems where JIC 37-degree flare connections are the specified standard. The inline straight configuration makes it appropriate for direct hose-to-port or hose-to-hose connections in tight plumbing runs. The female JIC swivel end reduces installation torque requirements and helps prevent hose twist during assembly, which is particularly useful in confined installation spaces common to mobile equipment and machinery hydraulics.

Key Features

• 5,000 psi maximum working pressure for demanding hydraulic service
• Male JIC 37-degree flare inlet with female JIC 37-degree flare swivel outlet
• Straight inline configuration for direct hose-to-port routing
• Steel construction for durability in high-pressure fluid power applications
• 3/8-18 thread size with 3/8-inch hose size compatibility
• Swivel female end simplifies assembly and reduces hose twist during makeup

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies requiring a 3/8-inch male JIC to female JIC swivel straight connection rated to 5,000 psi.

Installation Notes

This fitting should be installed by a qualified hydraulic technician or fluid power specialist. Always depressurize and bleed down the hydraulic system completely before removing or installing any fittings. JIC 37-degree flare connections are torqued by feel using the flats-from-finger-tight method per SAE J514 guidelines — do not overtighten. Inspect seating surfaces for nicks or contamination before assembly to ensure a leak-free connection.
