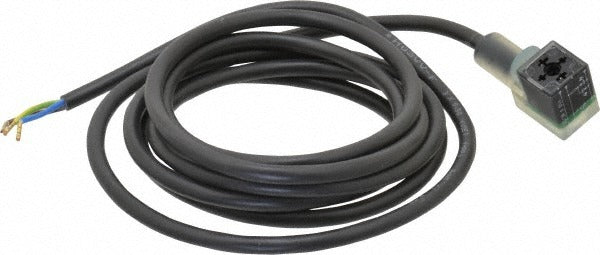

Parker PS2946J83BP Solenoid Valve 3 Pin Connector

Product Description

The PARKER PS2946J83BP is a lighted 3 pin connector accessory designed for use with solenoid valves in fluid control and pneumatic systems. The built-in indicator light provides a quick visual confirmation that the solenoid coil is energized, reducing diagnostic time during commissioning and troubleshooting. Weighing 0.07 pounds, this compact connector is a direct-fit replacement or add-on component for compatible Parker valve assemblies. Installation is handled by licensed electricians or qualified fluid power technicians as part of valve wiring and system integration work.

This connector is specified for use with Parker B Series body ported solenoid valves. It is suited for both new installations and field retrofits where a lighted connector is needed to add circuit status indication to an existing valve setup. Typical applications include industrial automation, pneumatic actuation panels, and process control systems where quick visual feedback on valve status is required.

Key Features

• Integrated indicator light confirms solenoid coil is energized without additional test equipment
• 3 pin connector configuration for secure, standardized electrical connection
• Designed for use with Parker B Series body ported solenoid valves
• Lightweight at 0.07 pounds for easy handling and installation
• Sold as individual unit with no minimum order beyond single quantity

Compatibility

Designed for use with Parker B Series body ported solenoid valves as a compatible lighted connector accessory.

Installation Notes

De-energize the circuit and depressurize the system before disconnecting or installing any solenoid valve connector. This component is typically installed by a licensed electrician or qualified fluid power technician in accordance with applicable NEC requirements for control wiring. Verify that the connector pin configuration and voltage rating of the coil circuit match before completing the connection. Do not force the connector into place; proper seating should require minimal resistance.
