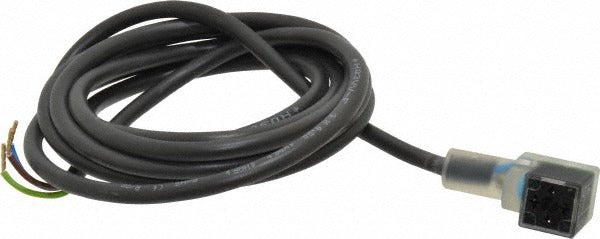

Parker PS2946J79BP Solenoid Valve 3 Pin Connector

Product Description

The PARKER PS2946J79BP is a lighted 3-pin connector accessory designed for use with solenoid valve assemblies. It provides a quick, reliable electrical connection point for the solenoid coil, with an integrated indicator light that confirms when the valve is energized. This type of connector is a standard component in industrial fluid control and pneumatic systems, typically installed by licensed HVAC technicians, plumbers, or industrial maintenance professionals working with directional control or shut-off valve assemblies.

This connector is specified for use with Parker B Series body ported solenoid valves. It is commonly found in commercial HVAC systems, compressed air circuits, and fluid handling applications where a lighted status indicator is required for fast visual confirmation of valve state during commissioning or troubleshooting.

Key Features

• Integrated indicator light confirms valve energization at a glance
• 3-pin connector design provides secure, standardized electrical interface
• Designed as a direct accessory for Parker B Series body ported valves
• Compact, lightweight form factor at 0.07 pounds
• Sold individually for single-unit replacement needs

Compatibility

Designed for use with Parker B Series body ported solenoid valves as a direct accessory connector.

Installation Notes

Installation should be performed by a qualified technician familiar with low-voltage electrical connections and solenoid valve systems. De-energize and lock out the circuit before disconnecting or connecting the solenoid plug. Verify that the connector pin orientation aligns with the coil terminals before seating to avoid damage. Refer to applicable electrical codes, including NEC guidelines, when wiring solenoid control circuits.
