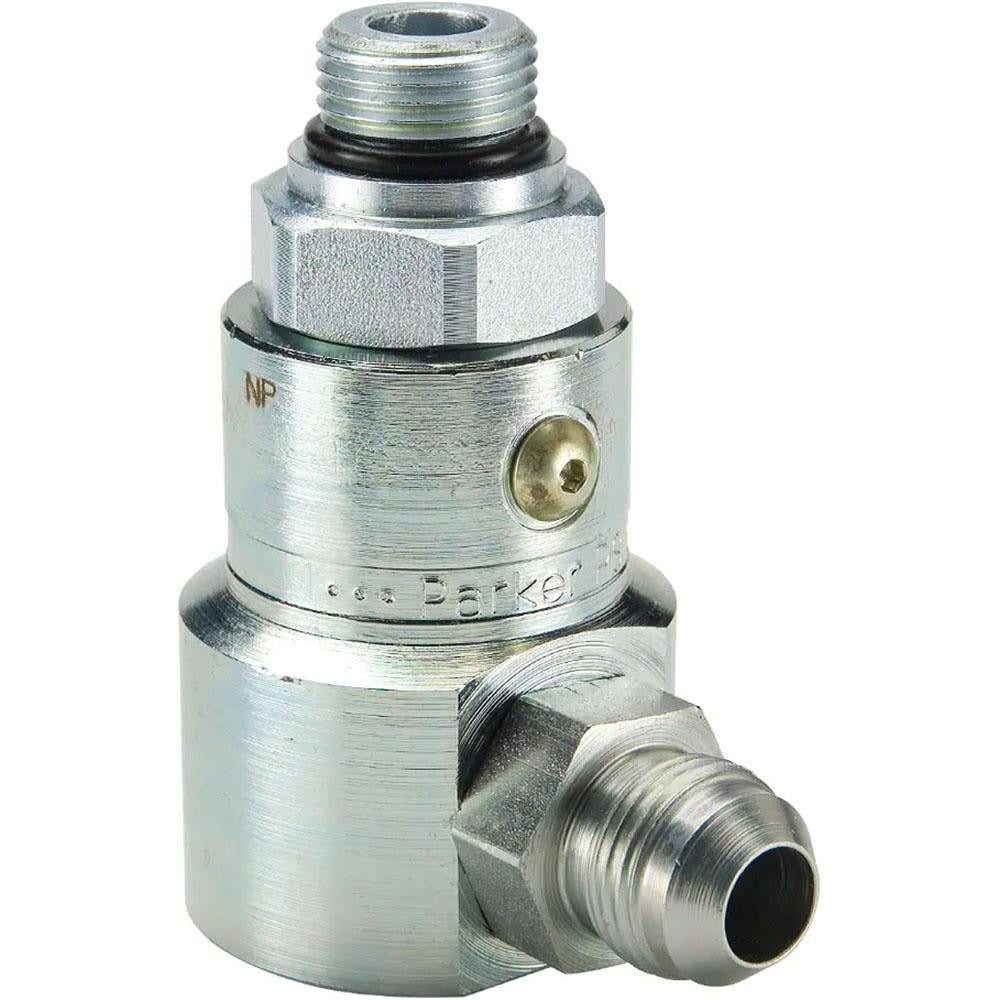

Parker PS1690503-16-16 Male Orb Jic Swivel Fitting 1in 5000psi

Product Description

The PARKER PS1690503-16-16 is a hydraulic hose fitting designed for high-pressure fluid power systems. It connects a male SAE O-Ring Boss (ORB) straight thread port to a male JIC 37-degree flare swivel end in a 90-degree elbow configuration. The fitting is machined from steel and rated to 5,000 psi maximum working pressure, making it suitable for demanding hydraulic circuits. With a hose size of 1 inch, a thread size of 1-5/16-12, and an overall length of 4.18 inches, this fitting is a precise component for routing hydraulic lines where directional changes are required. Hydraulic technicians and industrial maintenance professionals typically specify this part for OEM and service installations.

This fitting is used in industrial and mobile hydraulic systems where a 90-degree transition between an ORB port and a JIC swivel connection is needed. Typical applications include hydraulic power units, construction equipment, agricultural machinery, and manufacturing line hydraulics. The swivel design on the JIC end allows for rotational positioning during assembly, reducing hose twist and stress at the connection point. It is appropriate for use in both original equipment builds and field service repairs on systems using SAE and JIC hydraulic plumbing standards.

Key Features

• 5,000 psi maximum working pressure for high-demand hydraulic circuits
• 90-degree elbow body routes hoses cleanly around obstructions and tight spaces
• Male JIC 37-degree flare swivel end reduces hose twist during installation and service
• Male SAE O-Ring straight thread (ORB) port end provides leak-resistant sealing at the port
• Steel construction for durability in high-pressure and high-cycle environments
• Overall length of 4.18 inches suits standard hydraulic manifold and valve port spacing

Compatibility

Designed for hydraulic systems using SAE O-Ring Boss port connections and JIC 37-degree flare hose ends with a 1-inch hose size and 1-5/16-12 thread specification.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the O-ring seating surface and JIC flare for damage before assembly, and ensure the O-ring is in place and lubricated before torquing the ORB end. Follow applicable SAE and system manufacturer torque specifications for the fitting size; do not over-torque the swivel nut on the JIC end, as this can damage the flare seat.
