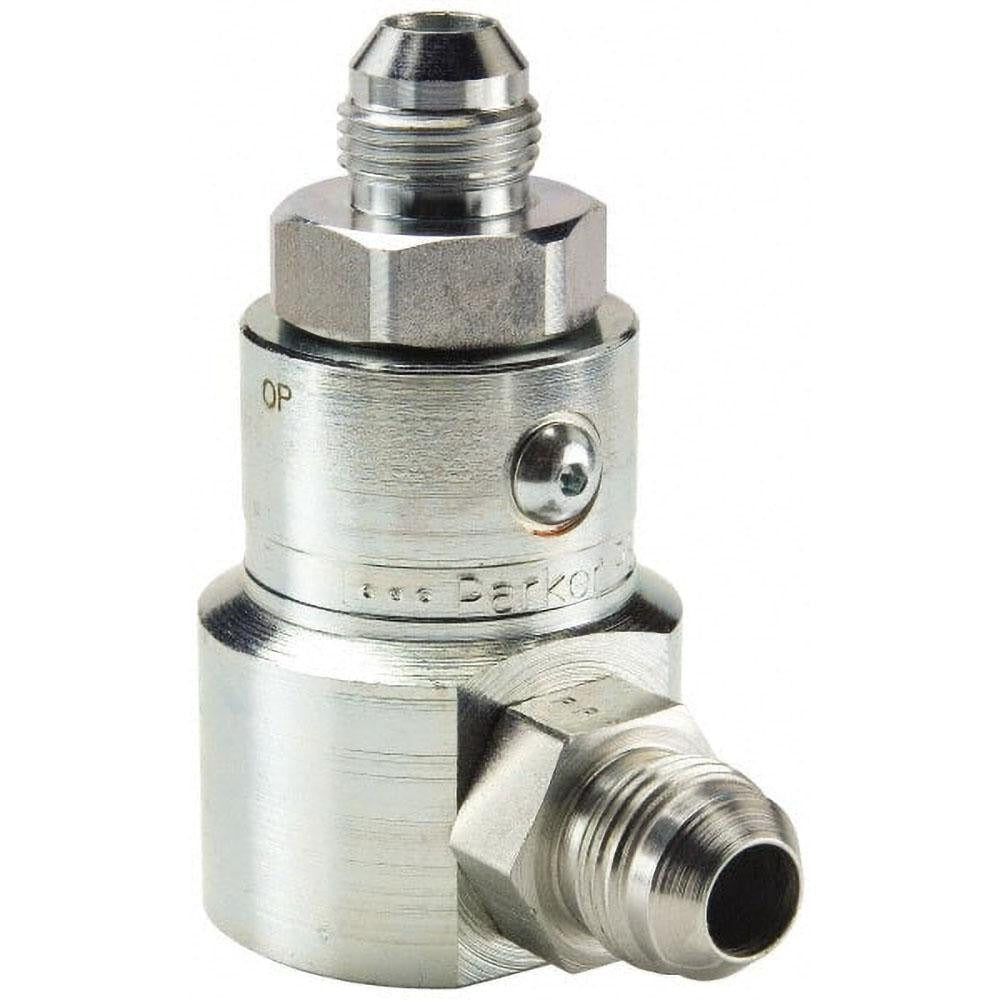

Parker PS1690303-16-16 Male Jic Swivel Fitting 5000 Psi

Product Description

The PARKER PS1690303-16-16 is a male JIC swivel fitting designed for high-pressure hydraulic hose assemblies. Built from steel, this 90-degree elbow fitting connects a 1-inch hose to a threaded port using a male NPTF inlet and a male JIC 37-degree flare outlet. It carries a maximum working pressure of 5,000 psi, making it suitable for demanding hydraulic circuits in mobile and industrial equipment. The swivel design allows the hose to be oriented without twisting the assembly during installation. Licensed hydraulic technicians and fluid power mechanics are the primary installers of this type of fitting.

This fitting is used in hydraulic systems requiring a 90-degree directional change at the hose-to-port connection. It is appropriate for applications where space constraints prevent a straight fitting from providing proper hose routing. The 1-5/16-12 thread size and 1-inch hose size suit mid-to-large bore hydraulic lines commonly found in construction equipment, agricultural machinery, and industrial presses. The PS series designation indicates this fitting belongs to PARKER's standard catalog line for hydraulic hose end fittings.

Key Features

• 90-degree elbow configuration for directional hose routing in tight spaces
• 5,000 psi maximum working pressure rated for high-demand hydraulic circuits
• Male JIC 37-degree flare outlet provides a reliable, leak-resistant threaded seal
• Male NPTF inlet thread for secure port connection without additional sealant
• Steel construction for durability in industrial and mobile equipment environments
• Swivel design prevents hose twist during assembly and routing

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using 1-inch hose with a 1-5/16-12 JIC thread interface and requiring a 90-degree elbow configuration at 5,000 psi working pressure.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and bleed down the hydraulic system completely before removing or installing any fittings. Inspect mating port threads and sealing surfaces for damage before assembly. Do not exceed the rated working pressure of 5,000 psi, and verify that all connected components are rated to the same or higher pressure before returning the system to service.
