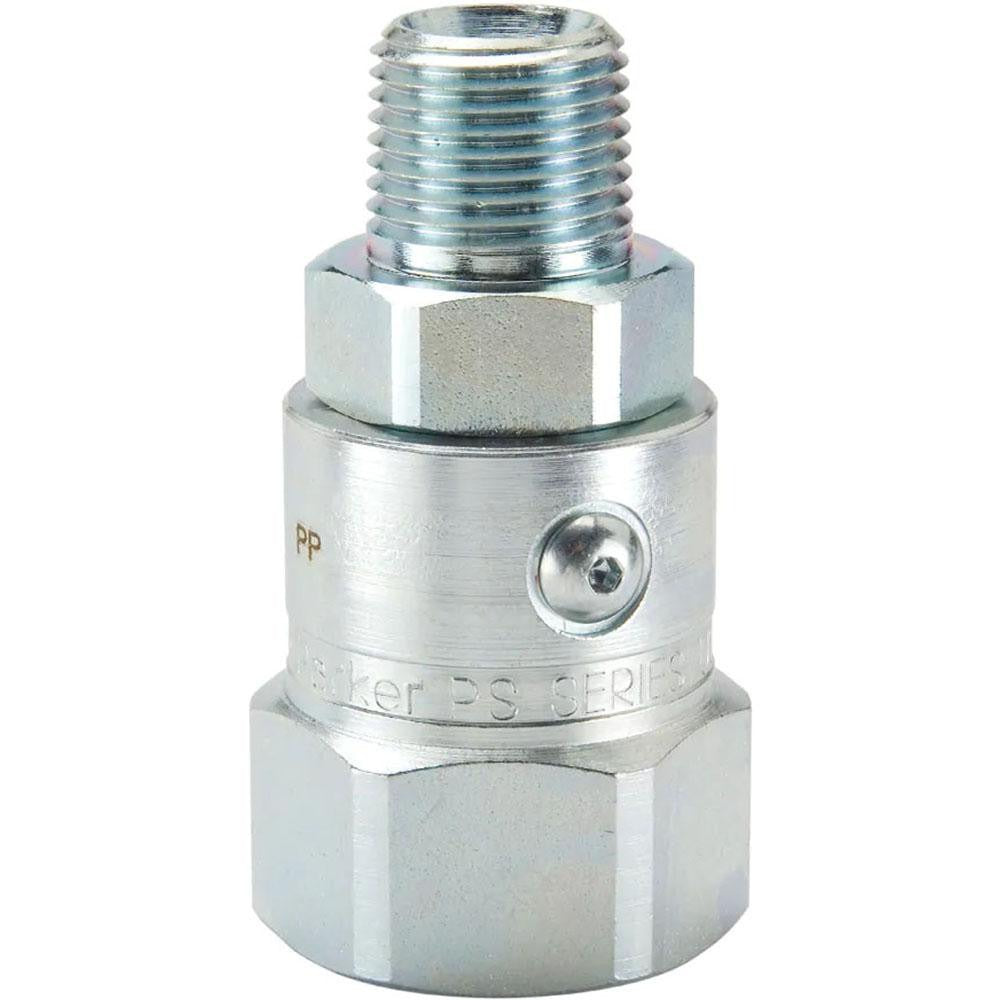

Parker PS1610102-16-16 Male Npt Female Npt Swivel Fitting

Product Description

The PARKER PS1610102-16-16 is a straight inline hydraulic hose fitting that connects a male NPT thread to a female NPT swivel thread in a single body. Built from steel, it is rated for a maximum working pressure of 5000 psi and sized for 1 inch hose connections with a 1-11/2 thread size. The swivel feature on the female NPT end allows rotation during assembly, reducing hose twist and making it easier to achieve proper alignment in tight plumbing runs. This fitting belongs to the Parker PS series and is intended for installation by hydraulic system technicians and industrial maintenance professionals working on high-pressure fluid power circuits.

This fitting is suited for use in hydraulic systems requiring a threaded inline transition between male and female NPT ports. The straight, inline configuration makes it appropriate for direct-run installations where hose routing does not require an angled adapter. Common applications include mobile hydraulic equipment, industrial machinery, and high-pressure fluid transfer systems where steel construction and a 5000 psi pressure rating are required. The 1 inch hose size and 3.54 inch overall body length support compact installation in space-constrained plumbing assemblies.

Key Features

• Male NPT to female NPT swivel configuration for twist-free hose assembly
• 5000 psi maximum working pressure rating for high-pressure hydraulic service
• Steel construction for durability in demanding fluid power applications
• Straight inline body at 3.54 inches overall length suits direct-run hose routing
• 1 inch hose size with 1-11/2 thread size for positive threaded engagement
• Parker PS series design for consistent dimensional and pressure standards

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic systems using 1 inch male and female NPT threaded connections rated to 5000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with NPT thread engagement and high-pressure fluid power systems. Depressurize and bleed down the hydraulic circuit completely before removing or installing any fittings. Apply appropriate thread sealant to the male NPT threads per system requirements, and do not over-torque, as NPT threads are tapered and susceptible to splitting under excessive force. Verify all connections are leak-free under controlled low-pressure startup before returning the system to full working pressure.
