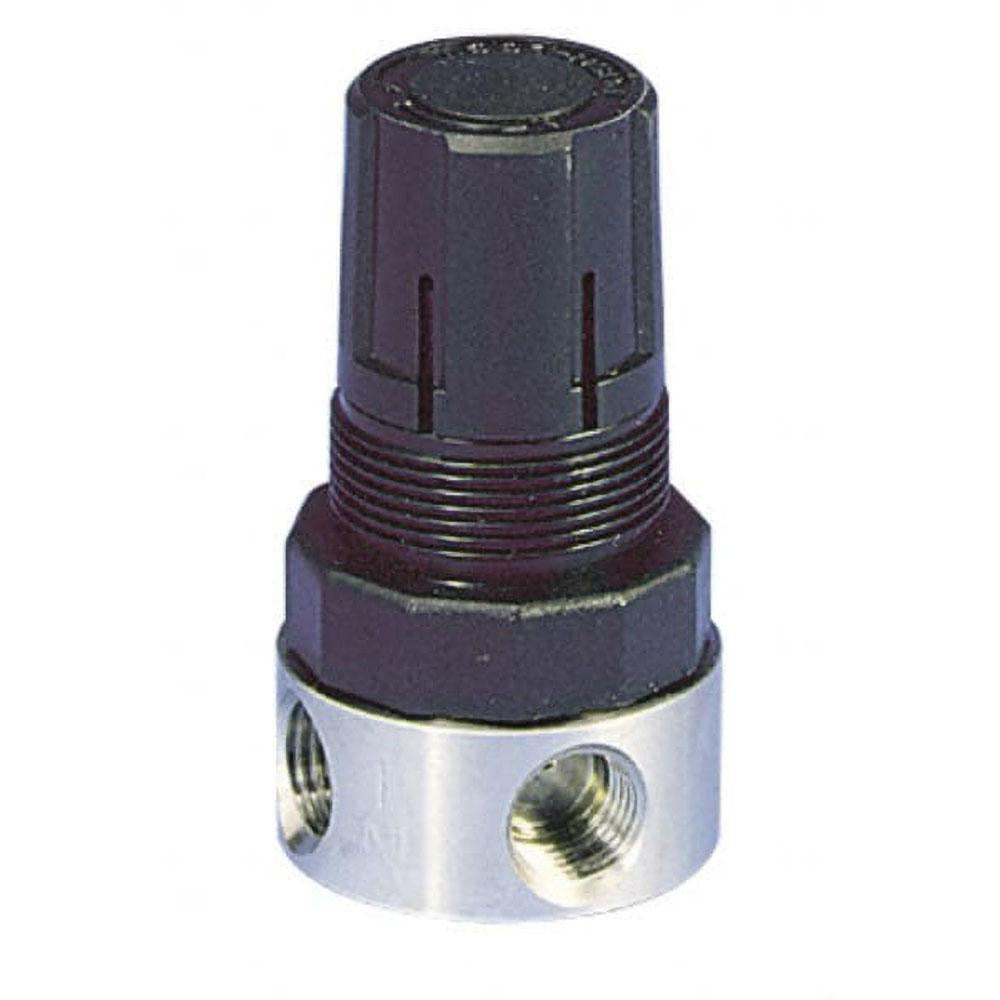

Parker PR364-02BSS Mini Air Regulator 300 Psi 1/4 Npt

Product Description

The PARKER PR364-02BSS is a miniature compressed air regulator built for precise downstream pressure control in pneumatic systems. Constructed from stainless steel, it handles a maximum supply pressure of 300 psi and delivers a regulated output range of 0 to 60 psi. With a maximum airflow capacity of 12 CFM, the PR364-02BSS suits applications where space is limited but reliable pressure regulation is required. A built-in relief function vents excess downstream pressure without a separate relief valve. This regulator is installed by industrial maintenance technicians, pneumatic system integrators, and automation specialists working with compressed air distribution equipment.

The PR364-02BSS fits into compressed air lines where a compact footprint is necessary, including machine tool enclosures, instrumentation panels, and small pneumatic actuator circuits. The 1/4 inch NPT end connections make it compatible with standard threaded fittings used throughout industrial and light commercial pneumatic plumbing. Its stainless steel body withstands environments where corrosion resistance is a priority, such as food processing, washdown areas, and outdoor installations. No pressure gauge is included, but a 1/4 inch gauge port is available for field-installed gauges if monitoring is needed.

Key Features

• Miniature form factor for space-constrained pneumatic installations
• Stainless steel body for corrosion resistance in demanding environments
• Maximum supply pressure of 300 psi with a 0 to 60 psi regulated output range
• Maximum airflow of 12 CFM for light to medium pneumatic circuit demand
• Integral relief function vents excess downstream pressure automatically
• 1/4 inch gauge port thread for optional field-installed pressure gauge

Compatibility

Part of the Parker PR364 series, designed as a miniature NPT-threaded compressed air regulator for use in standard 1/4 inch NPT pneumatic lines handling compressed air service.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial maintenance technician. Depressurize and lock out the compressed air supply fully before beginning work. The regulator should be installed with airflow direction matching the body markings, and all NPT threads should be sealed with appropriate thread sealant per system requirements. Verify downstream pressure setting with a calibrated gauge before returning the system to service.
