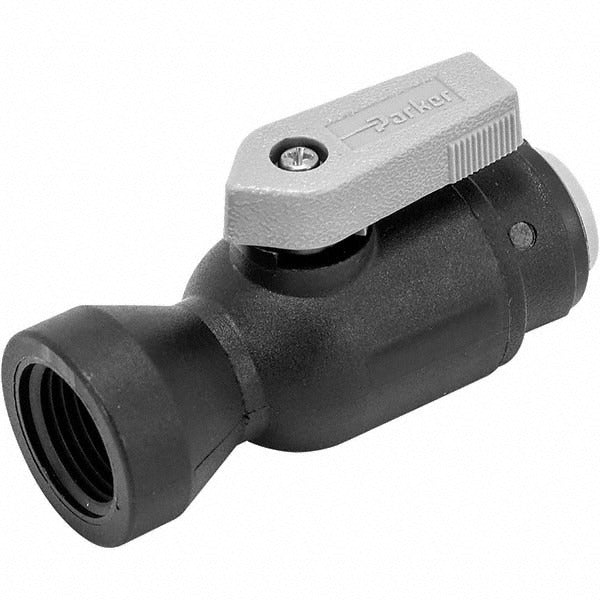

Parker PPB6VFC6-MG Bi-directional Manual Ball Valve 3/8 in

Product Description

The PARKER PPB6VFC6-MG is a bi-directional manual ball valve designed for fluid control applications in plumbing, HVAC, and light industrial systems. Built with a polypropylene body and a lever handle, it provides straightforward quarter-turn shutoff in either flow direction. The valve features an MNPT x Push-To-Connect end connection with an FNPT port, making it well suited for installations where quick, tool-free tube connections are needed on one end. At 0.07 pounds, it is lightweight and compact, measuring 1.32 inches in height, 1.4 inches in width, and 1.32 inches in length. Licensed plumbers and HVAC technicians working with 3/8-inch OD tubing runs will find this valve a practical inline shutoff solution.

This valve is intended for use in residential and light commercial systems where a reliable, manually operated shutoff point is required. Its bi-directional design means flow direction does not need to be considered during installation, reducing the chance of field errors. The Push-To-Connect end simplifies connections to 3/8-inch OD tubing without additional fittings, while the MNPT end threads into standard female NPT ports on manifolds, equipment panels, or inline fittings. Typical applications include water supply lines, reverse osmosis and filtration systems, and HVAC hydronic or refrigeration accessory plumbing.

Key Features

• Bi-directional flow allows installation without regard to flow direction
• Polypropylene body offers corrosion resistance for water and compatible fluid service
• MNPT x Push-To-Connect end connection for fast, tool-free tube insertion on one end
• Lever handle provides clear open/closed visual indication with a simple quarter-turn operation
• Compact form factor — 1.32 inches height, 1.4 inches width, 1.32 inches length — fits in tight spaces
• Lightweight at 0.07 pounds, minimizing load on tubing and fittings

Compatibility

Designed for use with 3/8-inch OD tubing and standard MNPT threaded ports. Suitable as an OEM-style replacement or new-installation shutoff valve in systems requiring a bi-directional ball valve with Push-To-Connect and MNPT end connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local plumbing codes. Shut off system pressure and drain the line before removing or installing the valve. Apply appropriate thread sealant to the MNPT threads and ensure the Push-To-Connect tube end is cut cleanly and fully seated before pressurizing. Verify polypropylene body compatibility with the fluid and temperature conditions of the system before installation.
