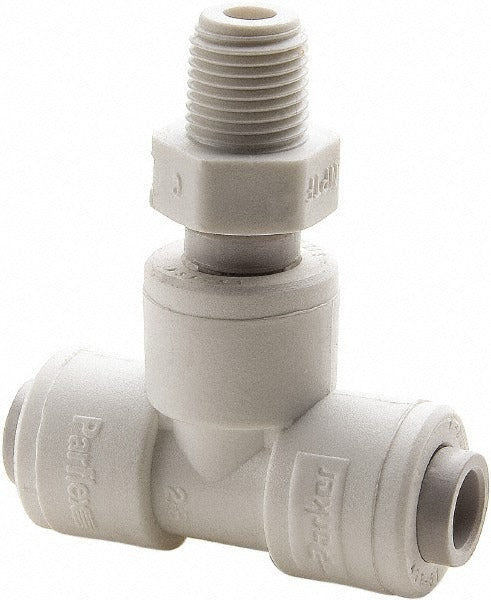

Parker PPB6MTS6-MG Male Swivel Branch Tee 3/8 in Od

Product Description

The PARKER PPB6MTS6-MG is a push-to-connect male swivel branch tee tube fitting designed for fast, tool-free plumbing and fluid-handling connections. Constructed from polypropylene, this fitting accepts 3/8 inch OD tubing on both the run and branch ports and features a swivel male thread on the branch outlet for flexible positioning during installation. Rated to 150 psi, it suits light-duty pneumatic, water, and chemical-transfer lines where a reliable tee connection is needed without compression hardware. Plumbers, HVAC technicians, and industrial maintenance trades install this fitting wherever a compact inline branch point is required.

This fitting is suited for residential and light commercial plumbing, HVAC condensate and fluid-transfer lines, and general pneumatic distribution systems. The push-to-connect design allows tubing to be inserted and locked in place without tools, reducing installation time significantly. The swivel male branch port accommodates minor misalignment in manifold or panel applications. It is packaged individually and sold in single-unit quantities.

Key Features

• Push-to-connect design — no tools required for tube insertion
• Swivel male branch outlet for flexible thread engagement and alignment
• 3/8 inch OD tube connection on run and branch ports
• Polypropylene construction for corrosion resistance in water and mild chemical service
• Rated to 150 psi for light-duty pneumatic and fluid-handling applications

Compatibility

Designed as an OEM-style push-to-connect fitting for use with 3/8 inch OD tubing in standard plumbing, pneumatic, and fluid-transfer systems.

Installation Notes

Installation is performed by cutting tubing square, deburring the end, and inserting it fully into the push-to-connect port until it seats. Shut off system pressure and depressurize all lines before installing or removing the fitting. To release tubing, depress the collet ring and withdraw the tube. Always verify that the tubing OD and pressure rating are within the fitting specifications before placing the system into service.
