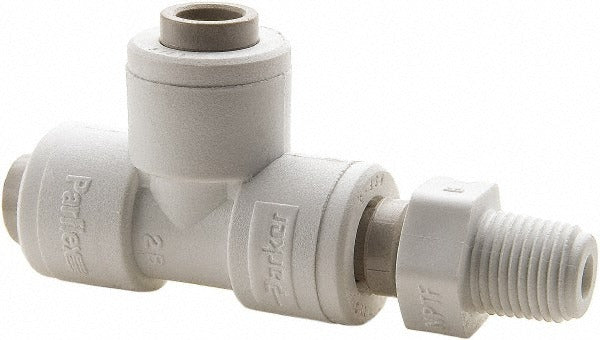

Parker PPB6MRS4-MG Male Swivel Run Tee 3/8 X 1/4 in Od

Product Description

The PARKER PPB6MRS4-MG is a push-to-connect male swivel run tee fitting designed for quick, tool-free tube connections in fluid handling and pneumatic systems. Constructed from polypropylene, this fitting handles working pressures up to 150 psi and accommodates tube outside diameters of 3/8 inch on the run ports and 1/4 inch on the branch. The swivel male thread design allows for easier alignment during installation without twisting the connected tubing. Plumbers, HVAC technicians, and fluid system technicians install this type of fitting in light-duty pneumatic, water, and chemical-transfer lines where corrosion resistance and fast assembly are priorities.

This fitting is suited for residential and light commercial applications involving push-to-connect tubing runs that require a tee branch with a male threaded outlet. Typical install scenarios include water purification systems, pneumatic control lines, irrigation sub-assemblies, and similar low-to-medium pressure tubing networks. The polypropylene body resists corrosion and many common chemicals, making it appropriate for both wet and dry service environments where metal fittings would be subject to corrosion.

Key Features

• Push-to-connect design allows tool-free tube insertion for fast assembly
• Male swivel thread simplifies alignment without twisting tubing
• Polypropylene construction provides corrosion and chemical resistance
• Rated to 150 psi working pressure for light-to-medium duty service
• Run tube OD: 3/8 inch; branch tube OD: 1/4 inch

Compatibility

Designed as an OEM-style push-to-connect replacement fitting for tubing systems using 3/8 inch and 1/4 inch outside diameter tubing in light commercial and residential fluid or pneumatic applications.

Installation Notes

Installation is performed by plumbers or fluid system technicians. Shut off and depressurize the system fully before removing or installing any fitting. Ensure tubing ends are cut square and deburred before inserting into the push-to-connect ports to achieve a proper seal. Verify that the swivel male thread is engaged and hand-tightened before applying final torque per the connecting component manufacturer guidance, and do not exceed the 150 psi rated working pressure.
