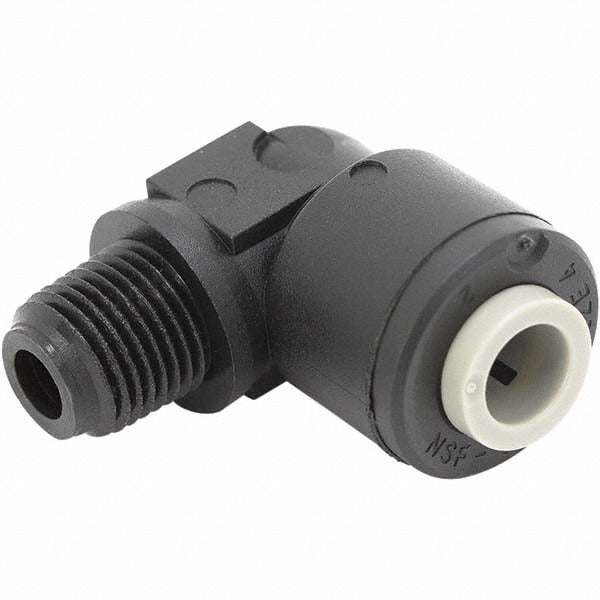

Parker PPB6ME6-MG Push-to-connect Male Elbow 3/8 in

Product Description

The PARKER PPB6ME6-MG is a push-to-connect male elbow tube fitting designed for use in pneumatic and fluid transfer systems where a 90-degree directional change is required at a male-threaded port. Constructed from polypropylene, this fitting handles pressures up to 150 psi and accommodates 3/8 inch OD tubing on the push-to-connect end. The push-in design allows fast, tool-free tube insertion while maintaining a secure, leak-resistant connection. HVAC technicians, plumbers, and fluid system installers use this type of fitting where compact routing and quick assembly are priorities.

This fitting is suited for residential and light commercial applications involving air lines, water lines, and compatible fluid systems. The male elbow configuration connects directly to a threaded port while allowing the connected tubing to exit at a 90-degree angle, which helps manage tight routing in equipment enclosures, control panels, and plumbing assemblies. It is sold individually and is appropriate wherever a push-to-connect male elbow is required for 3/8 inch OD tubing runs.

Key Features

• Push-to-connect design allows tool-free tube insertion and removal
• Polypropylene construction offers corrosion resistance for compatible fluid and air service
• Rated to 150 psi working pressure
• 3/8 inch OD tube connection with male-threaded elbow outlet
• Compact footprint: 1.06 x 0.8 x 1.06 inches for use in space-constrained installations

Compatibility

Designed as an OEM-style replacement or new-installation push-to-connect male elbow fitting for systems using 3/8 inch OD tubing with a compatible male-threaded port.

Installation Notes

This fitting is typically installed by HVAC technicians, plumbers, or pneumatic system technicians. Before installation, depressurize and isolate the system completely. Ensure the tubing is cut cleanly and squarely, and that the OD is within the fitting's specified range before insertion. Follow applicable codes such as IPC or IFGC for fluid and gas line connections, and verify that polypropylene is compatible with the media being conveyed.
