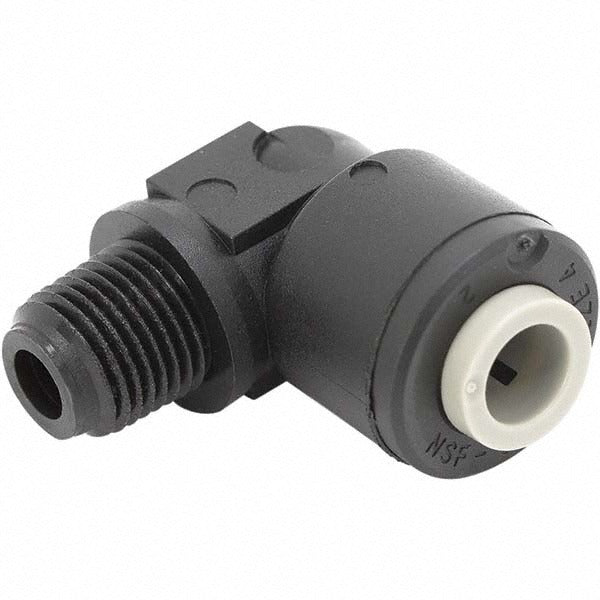

Parker PPB4MES4-MG Male Swivel Elbow Fitting 1/4 in Od

Product Description

The PARKER PPB4MES4-MG is a push-to-connect male swivel elbow tube fitting designed for fast, tool-free connections in fluid and pneumatic plumbing systems. Constructed from polypropylene, this fitting accepts 1/4 inch OD tubing and is rated to 150 psi. The swivel elbow design allows for rotational adjustment after installation, making it easier to align tubing runs in tight spaces. It is commonly installed by plumbers, HVAC technicians, and industrial maintenance professionals working with push-to-connect tube assemblies.

This fitting is suited for residential and light commercial applications where a 90-degree directional change is needed in a push-to-connect tube system. Its polypropylene body makes it appropriate for use with compatible non-aggressive fluids and low-pressure pneumatic lines. The compact dimensions of 1.71 inches height and 1.71 inches length keep the footprint small in confined installations. Single-piece packaging makes it a standard replacement or add-on component for service calls and small installations.

Key Features

• Push-to-connect design for fast, tool-free tube insertion
• Male swivel elbow allows rotational adjustment to align tube runs after connection
• Polypropylene construction suitable for compatible fluid and pneumatic applications
• Rated to 150 psi operating pressure
• Accepts 1/4 inch OD tubing
• Compact form factor at 1.71 x 0.69 x 1.71 inches

Compatibility

Designed as a push-to-connect replacement or add-on fitting for systems using 1/4 inch OD tubing with standard male threaded port connections.

Installation Notes

Installation should be performed by a qualified plumber or HVAC technician familiar with push-to-connect fittings. Depressurize and drain the line before removing or installing any fitting. Insert tubing fully until it seats to ensure a leak-free connection, and verify tube OD compatibility before assembly. Follow all applicable plumbing codes for the jurisdiction where the fitting is installed.
