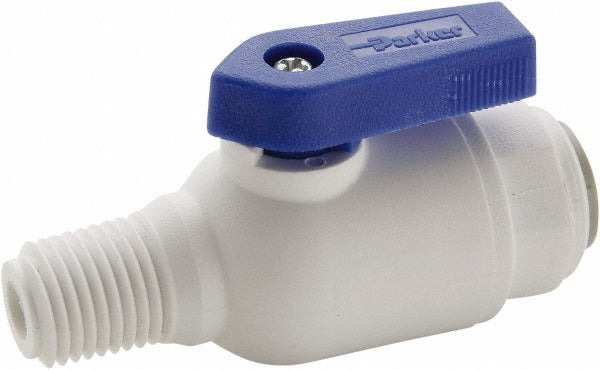

Parker PP6VMC4-MG Ball Valve 1/4 in Mnpt Push-to-connect

Product Description

The PARKER PP6VMC4-MG is a male connector bi-directional manual ball valve designed for 1/4 inch pipe applications with MNPT x Push-To-Connect end connections. This full port valve features a polypropylene body and EPDM seals, making it suitable for water and fluid handling systems where NSF and FDA compliance is required. The wedge-style handle allows for quick quarter-turn shutoff. Rated to 150 psi and 10 bar, it is built for low-to-moderate pressure service. Licensed plumbers and mechanical contractors typically install this valve in potable water, filtration, and fluid distribution systems.

This valve is suited for residential and light commercial plumbing and fluid handling applications. The MNPT x Push-To-Connect configuration simplifies installation in tubing runs using 3/8 inch outside diameter tubing. NSF-51 and NSF-61 certifications make it appropriate for potable water contact and food equipment plumbing applications. It is commonly used in water treatment systems, filtration assemblies, and similar distribution setups where a compact manual shutoff is needed.

Key Features

• Full port design minimizes flow restriction through the valve body
• MNPT x Push-To-Connect ends allow direct connection to threaded pipe and 3/8 inch OD tubing
• Polypropylene body provides corrosion resistance in water and compatible fluid service
• EPDM seals rated for a minimum working temperature of 35 degrees F
• NSF-51 and NSF-61 certified for use in potable water and food equipment applications
• FDA-compliant materials for regulated fluid handling environments

Compatibility

Designed for use with 1/4 inch pipe and 3/8 inch outside diameter tubing in systems requiring MNPT x Push-To-Connect end connections. NSF-51 and NSF-61 certifications confirm suitability for potable water and food equipment plumbing installations.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical technician in accordance with applicable plumbing codes such as the IPC. Shut off system pressure and depressurize the line completely before installing or servicing this valve. Ensure the push-to-connect tubing end is cut cleanly and squarely for a proper seal. Do not exceed the rated working pressure of 150 psi.
